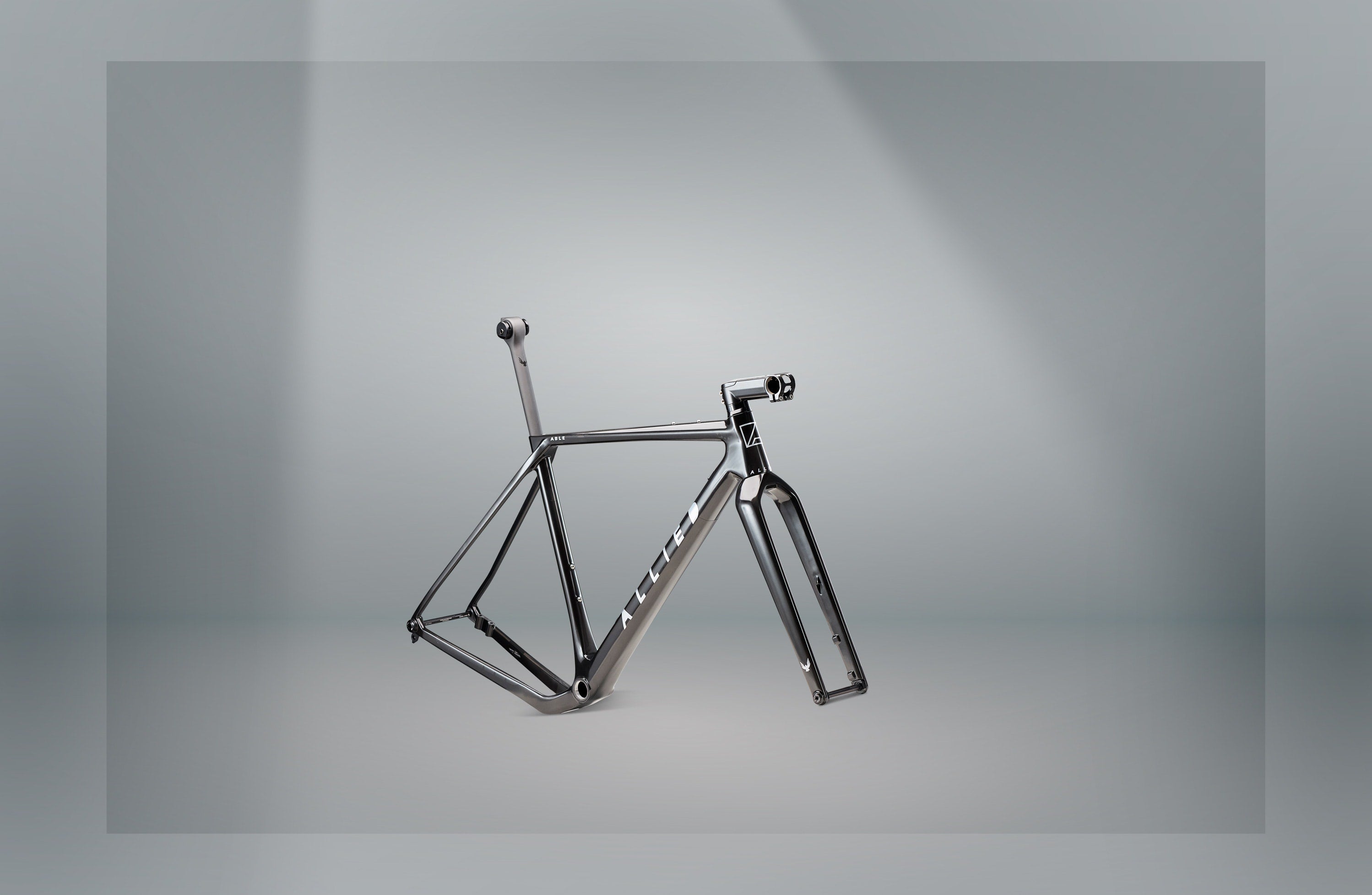

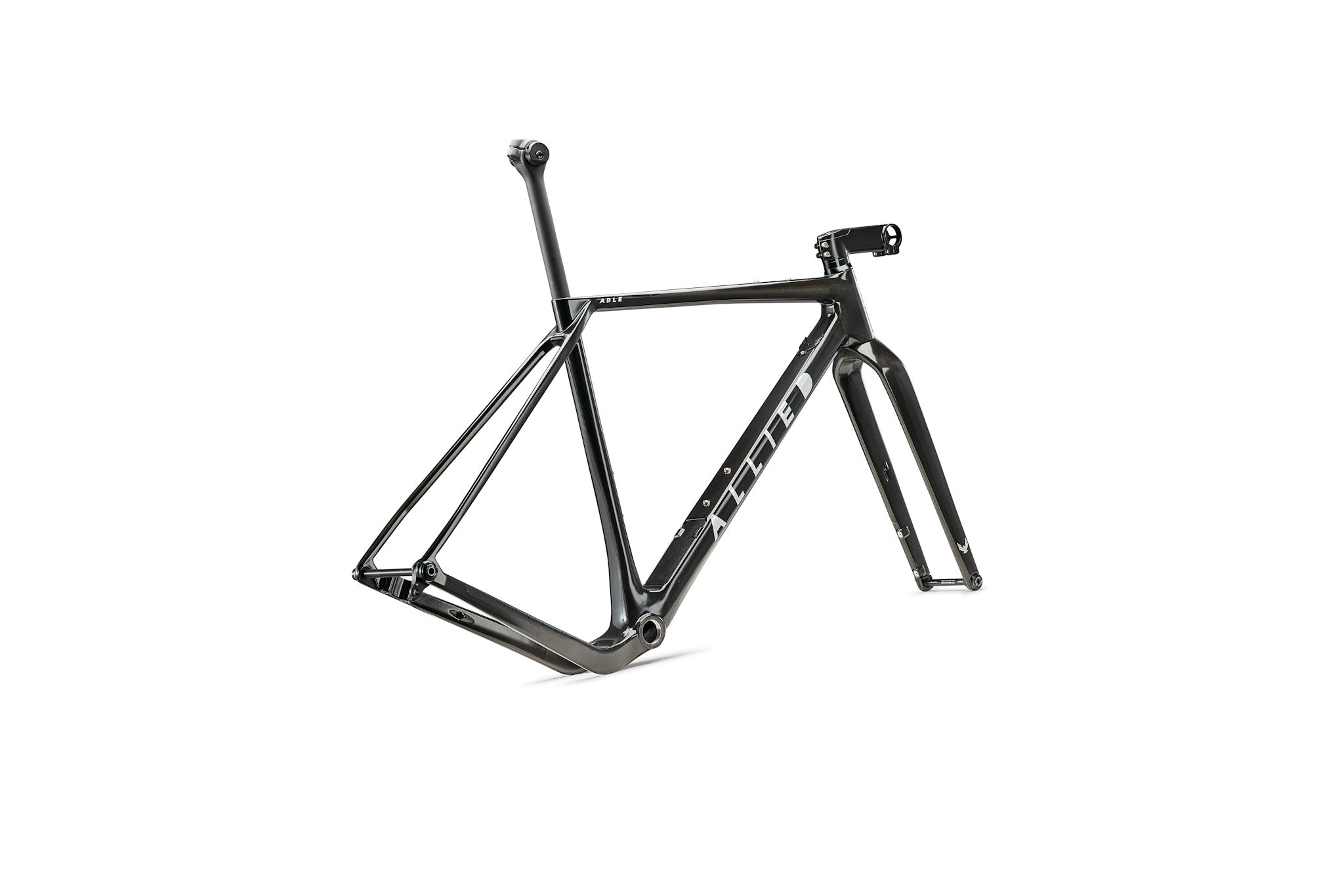

Wanna build your dream gravel bike? Whether you're going DIY or want us to tag along for the build, ABLE's frameset is the perfect canvas for custom specs and custom paint.

  • Carbon frame
  • Carbon seatpost
  • ST03 internally-routed stem

RACE FAST. GO WIDE.

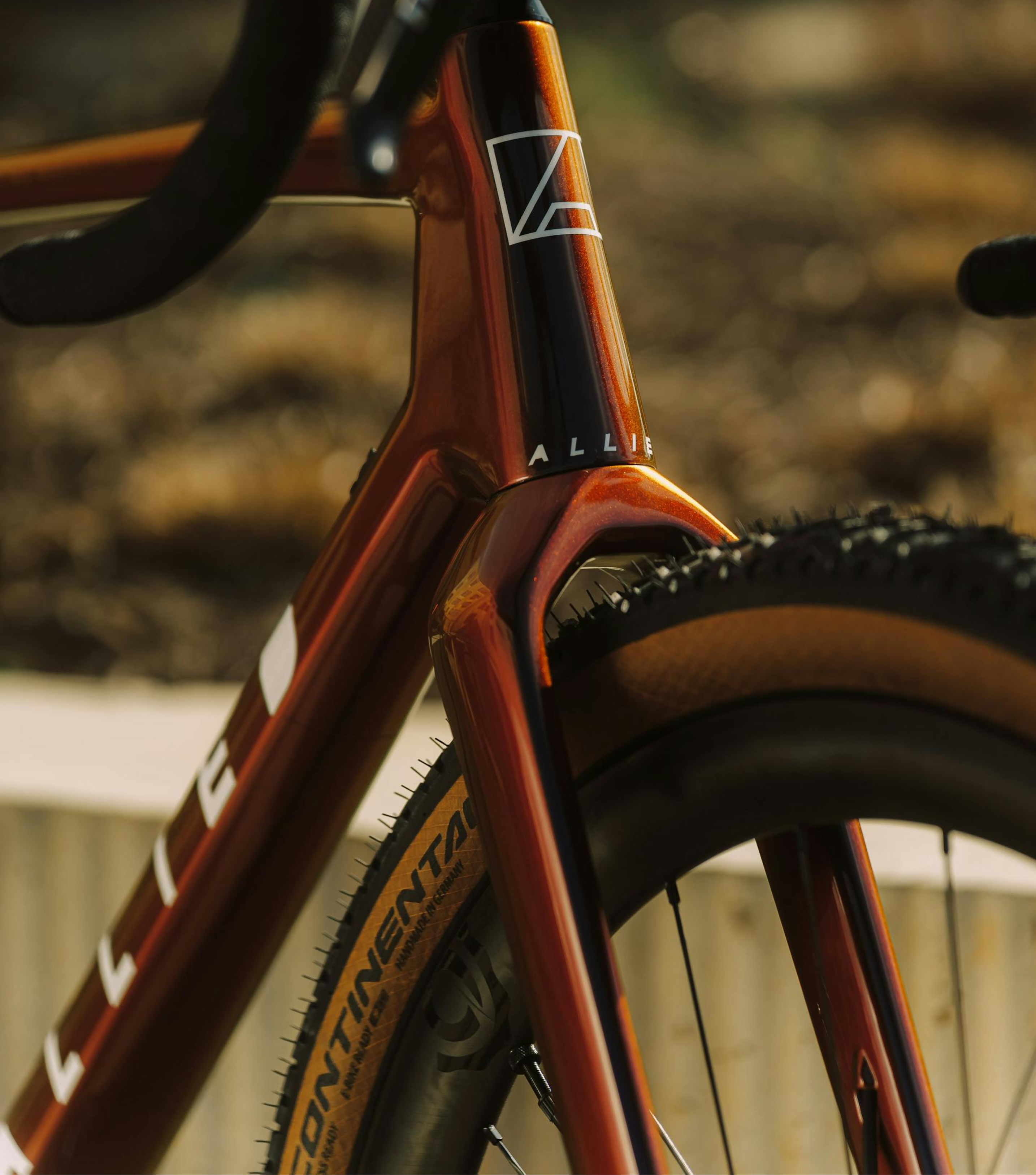

ABLE is the premier gravel race-bike of choice for two essential reasons: speed and stability. Its racing-focused geometry and sleek tube shapes enable its swift, road-bike responsiveness, while lowered chainstays and clearance for gargantuan 700x57mm tires give it near MTB-level performance capability to meet the demands of modern gravel events. Speed is nothing without control, and ABLE is a master of both.

Built to Suit

You can’t start your gravel build with a better canvas than ABLE. Optimized for up to 700x57mm tires, boasting a threaded bottom bracket, internal cable routing, and UDH, suspension fork, and dropper post compatibility—it’s a gravel racer’s dream machine. And we’re here to help. Just chat in or request a callback, and we’ll get going on selecting components for your custom ABLE build.

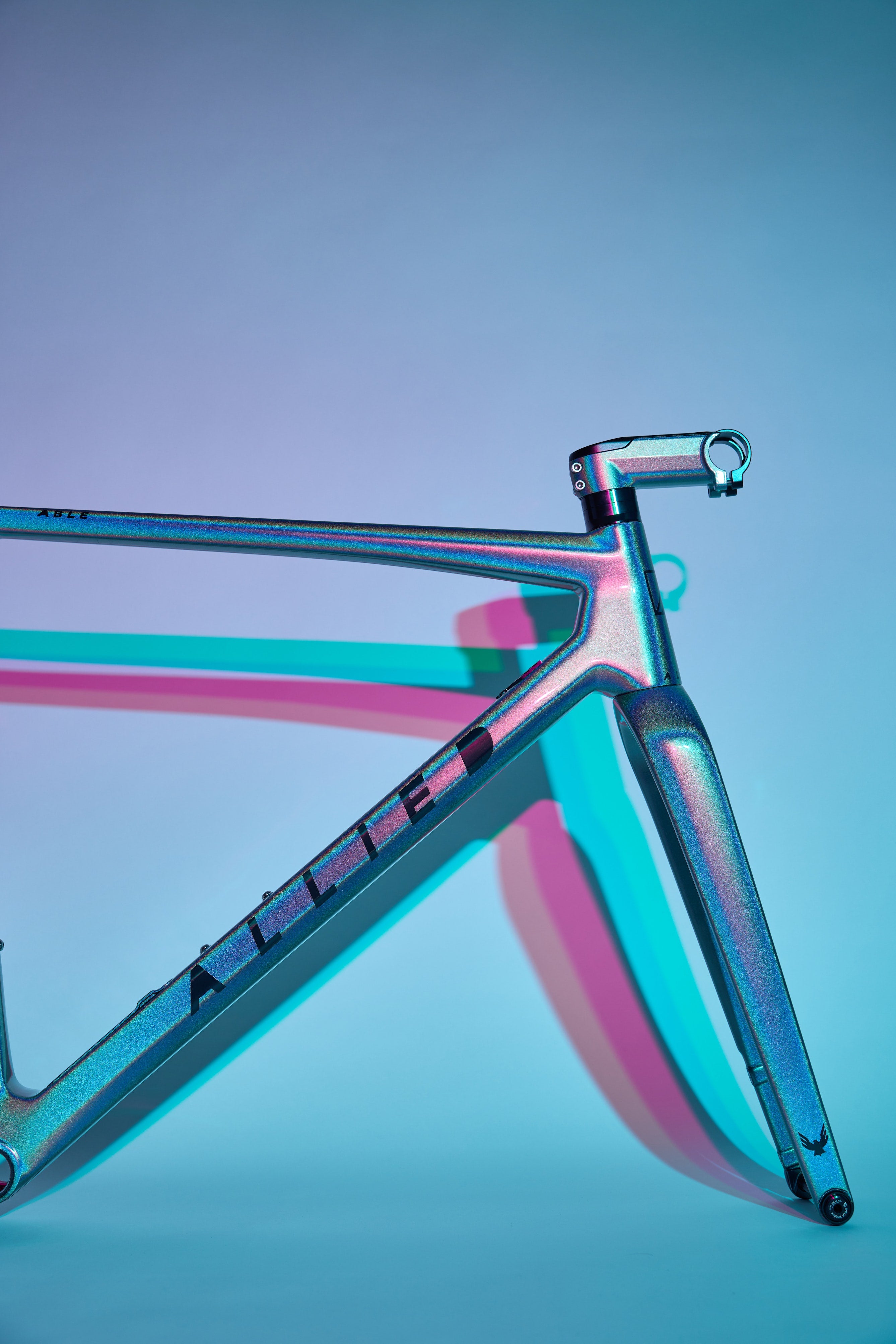

Custom Paint is Our Thing

You may have heard, but our studio is known for making masterpieces. Have a little idea floating in your head for custom paint on your ABLE? Select custom color on your frameset to work with our in-house maestros on styling your ABLE with a one-of-a-kind look.

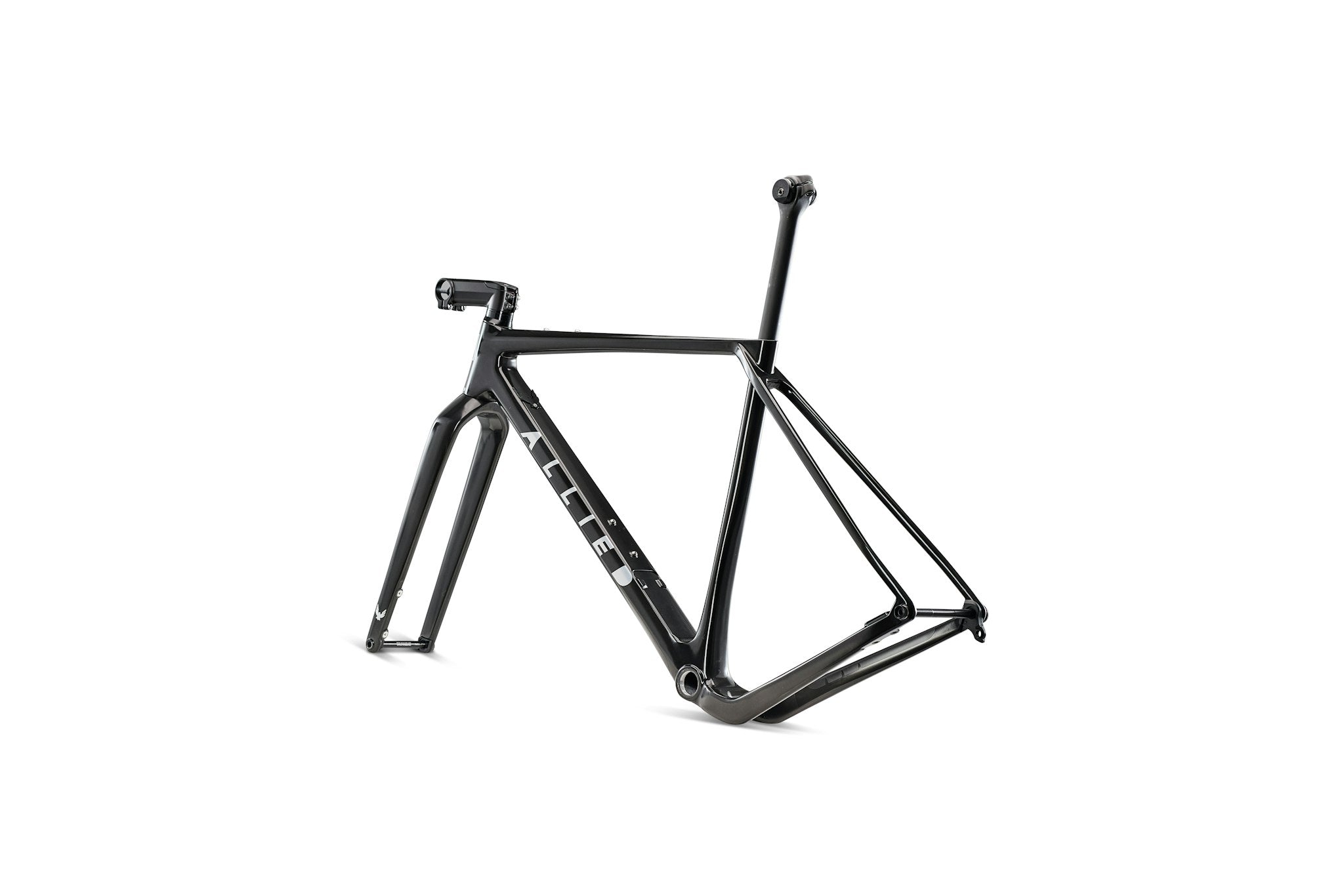

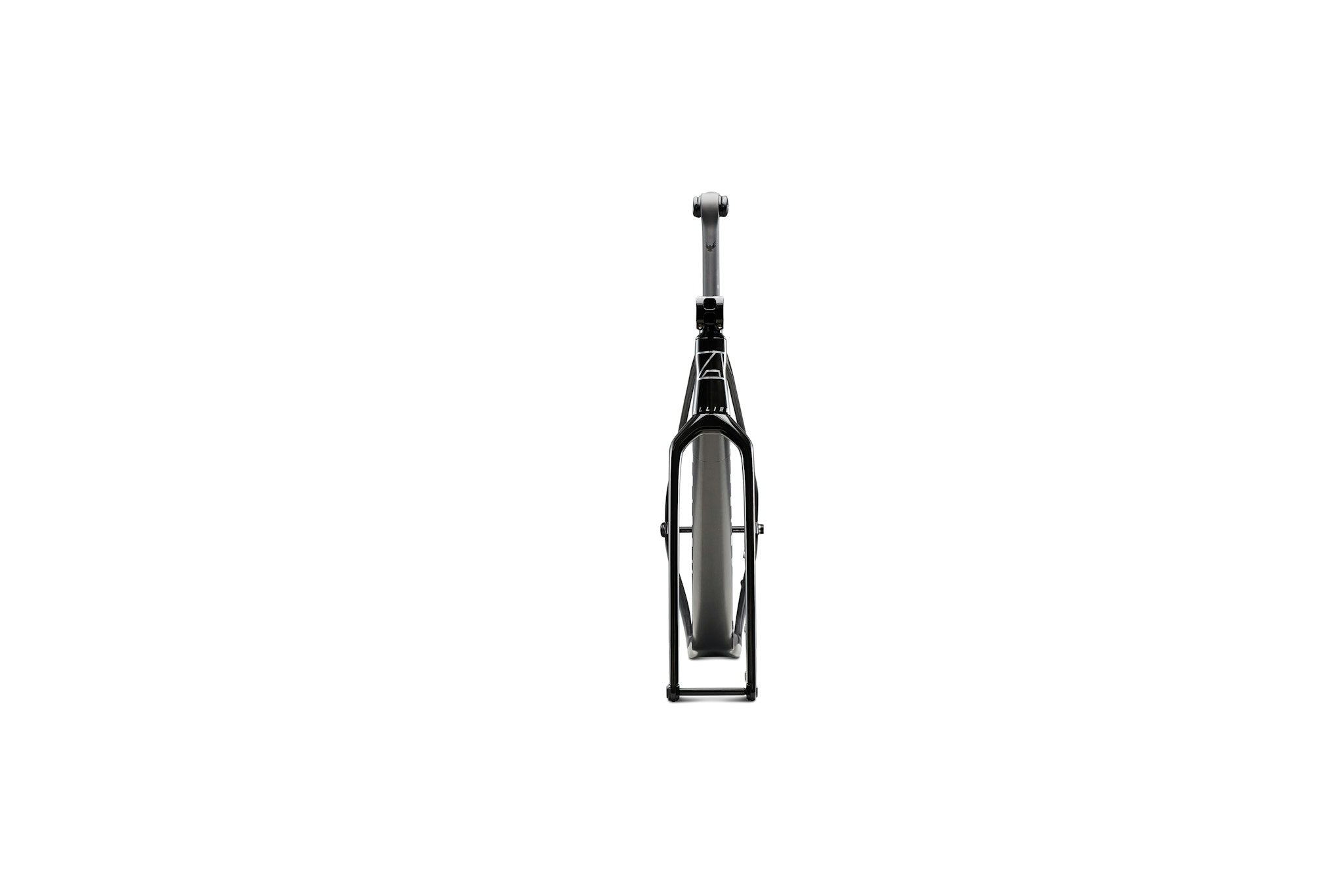

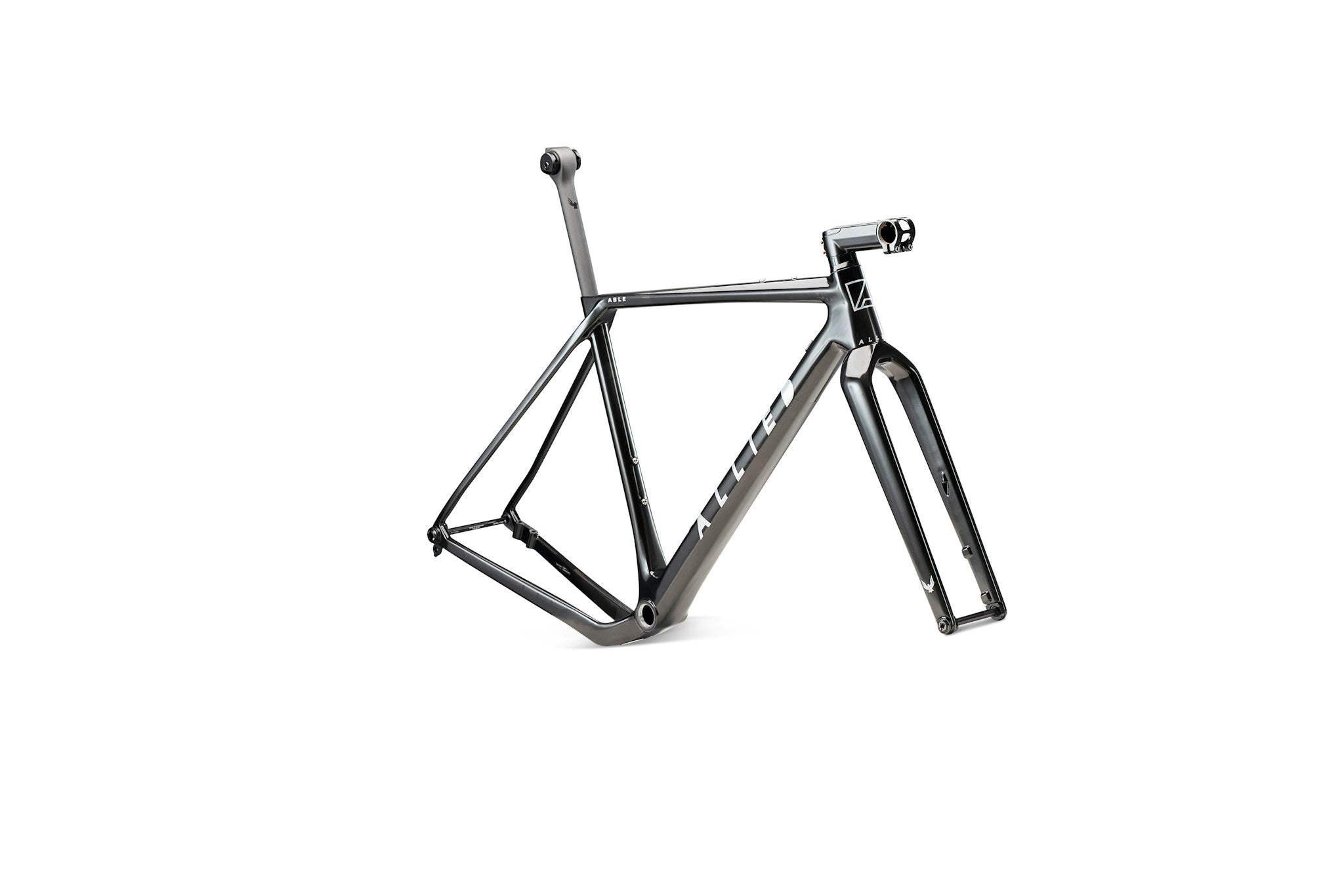

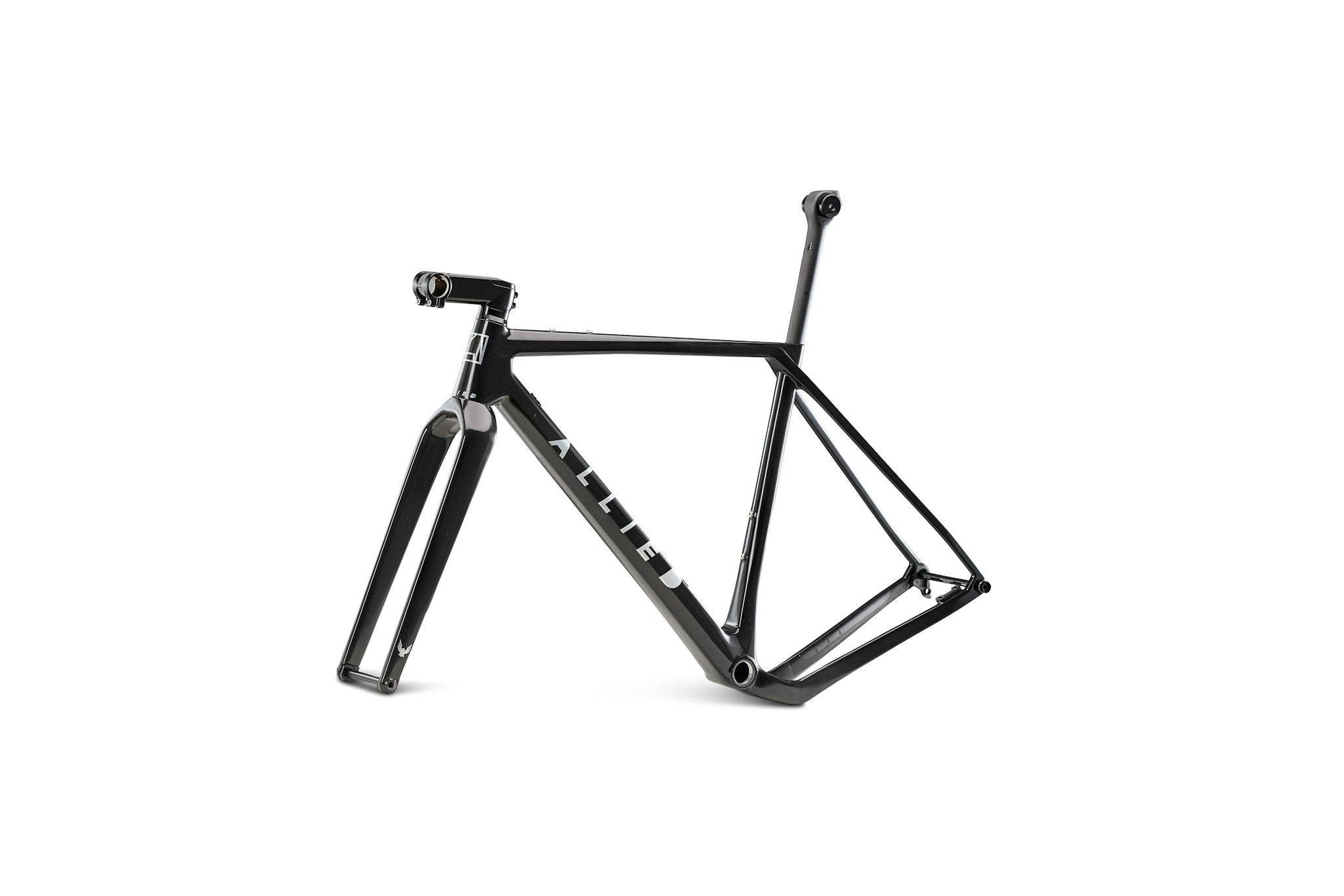

  • ABLE Frameset
  • ABLE Frameset
  • ABLE Frameset
  • ABLE Frameset
  • ABLE Frameset
  • ABLE Frameset
Geometry

Unflinching confidence and performance in every gravel condition is what ABLE is all about. With race-focused rider positioning, nimble handling, and stable tracking, ABLE feels like a rocket when it’s time to hit the gas and planted when the tracks get rough.

All units are in Millimeters or Degrees
52 54 56 58 61
a Stack 540 555 575 595 615
b Reach 390 395 400 410 415
c Effective top tube 534 554 564 580 591
d Seat tube length 460 500 530 550 570
e Head tube length 97 113 135 156 177
f Head tube angle 70.5° 70.5° 70.5° 70.5° 70.5°
g Seat tube angle 75° 74° 74° 74° 74°
h Bottom bracket drop 80 80 80 80 80
i Chainstay length 435 435 435 435 435
j Fork length 410 410 410 410 410
k Wheelbase 1039 1049 1061 1078 1090
l Standover height 752 787 812 832 852
m Fork rake 55 55 55 55 55
n Front center 611 622 633 651 663
Size Guide

Please note, we do not have a height-based size chart. Since everyone's proportions are different, we prefer to have a human involved. Please email our fitting team at support@alliedcycleworks.com and we will custom fit you via your measurements and current bike geometry.

X-Small Reach: 390mm
152cm 5'2" - 167cm 5'8"
Small Reach: 395mm
162cm 5'7" - 177cm 5'10"
Medium Reach: 400mm
172cm 5'9" - 188cm 6'0"
Large Reach: 410mm
180cm 5'11" - 195cm 6'4"
X-Large Reach: 415mm
0cm 6'0" - 0cm 6'4"
Frequently Asked Questions

700 x 45mm is the smallest tire we recommend for handling characteristics and safety. Any smaller would lower the bottom bracket and increase the risk of pedal strikes in corners and off road.

29 x 2.25/57mm MEASURED Width  (Note: tire manufacturers measure differently, so it’s best to use calipers to check that the tire isn’t over 57mm wide). For more details, see our compatibility guide here.

The ABLE frame was designed, proto-typed and fully tested in-house at our factory in Rogers, AR.  The carbon lay-up and molding on the front triangle and rear triangle take place at an external factory based in Asia.  Each raw carbon part produced at the external factory undergoes a rigorous in-house quality inspection and paint preparation to ensure the highest standards.  The ST03 stem is manufactured fully in-house at our Rogers location.   Finally, the frame is custom-painted and assembled to each customer’s unique order at our Rogers facility, then goes through a final inspection and test ride before leaving the factory. You can read more about our manufacturing updates here.

No, the ABLE frame is purposely designed for 1x to maximize tire clearance with the shortest chainstay possible.

Wolftooth Premium IS41/52 with a custom dust-cap and spacers to match our STO3 stem design. If you are running a standard externally routed stem, it will also accommodate any IS41/52 headset like Chris King Dropset 3.

Yes, it can fit gravel-specific forks from Rockshox, Fox, and Cane Creek. You will need to use a standard stem and ported Eagle cable guide.  Keep in mind, most suspension forks will limit tire clearance per the recommendation of the fork manufacturer.

Yes, all of our bikes and models ship set up tubeless with Orange Seal sealant.

Up to 50 tooth in the front using a SRAM Wide, or GRX 1x cranksets.

Yes, please select 'Custom' for the paint option when your purchase your ABLE and we will follow up to confirm what paint option you are looking for. Keep in mind, the $750 is the starting price for custom paint, which covers the cost of matching most standard auto paint colors, but additional colors, complex colors and design work will incur additional labor and materials costs that we will quote.

We do offer a version of the ABLE with externally routed ABLE fork for the front brake, and an Eagle with external cable port for the rear brake, and standard IS41/52 headset compatible with standard stems.

No, the ABLE is designed for wireless electronic drivetrains only, with or without our internal stem.

68mm English Threaded with spacing for Wide cranks.

Check out the ST03 video tutorial below.

ALLIED Stem ST03 Tutorial
