ECHO at its core. A lightweight carbon frame and fork designed around speed, composure, and range—ready to be built your way. From drivetrain to wheelset, every detail is yours to define, with a platform engineered to deliver performance across long distances and varied roads.

Bike image may not reflect actual build selections

All-Road

Build Your Echo
Echo
ECHO Frameset Kit

ECHO at its core. A lightweight carbon frame and fork designed around speed, composure, and range—ready to be built your way. From drivetrain to wheelset, every detail is yours to define, with a platform engineered to deliver performance across long distances and varied roads.

  • ECHO Carbon Frame
  • ALLIED ST03 Integrated Stem
  • ALLIED SP01 Aero Seatpost

Pay using HSA/FSA with flex Select Flex at checkout to pay for your HSA/FSA eligible items

Your build highlights

These components are required:

Your total:

Your total:

Lifetime Warranty

Every ALLIED frameset is backed by our lifetime warranty.

Flexible Payments

Finance with Affirm or use your HSA/FSA benefits. Yes, our bikes are eligible.

30-Day Returns

Buy with confidence — return within 30 days for a refund or exchange.

A Platform to Build On

ECHO’s frame and fork bring together lightweight construction, refined aerodynamics, and a rebalanced geometry—creating a platform that’s fast, stable, and composed over distance. It’s a foundation built with intent, ready to be tailored to your ride.

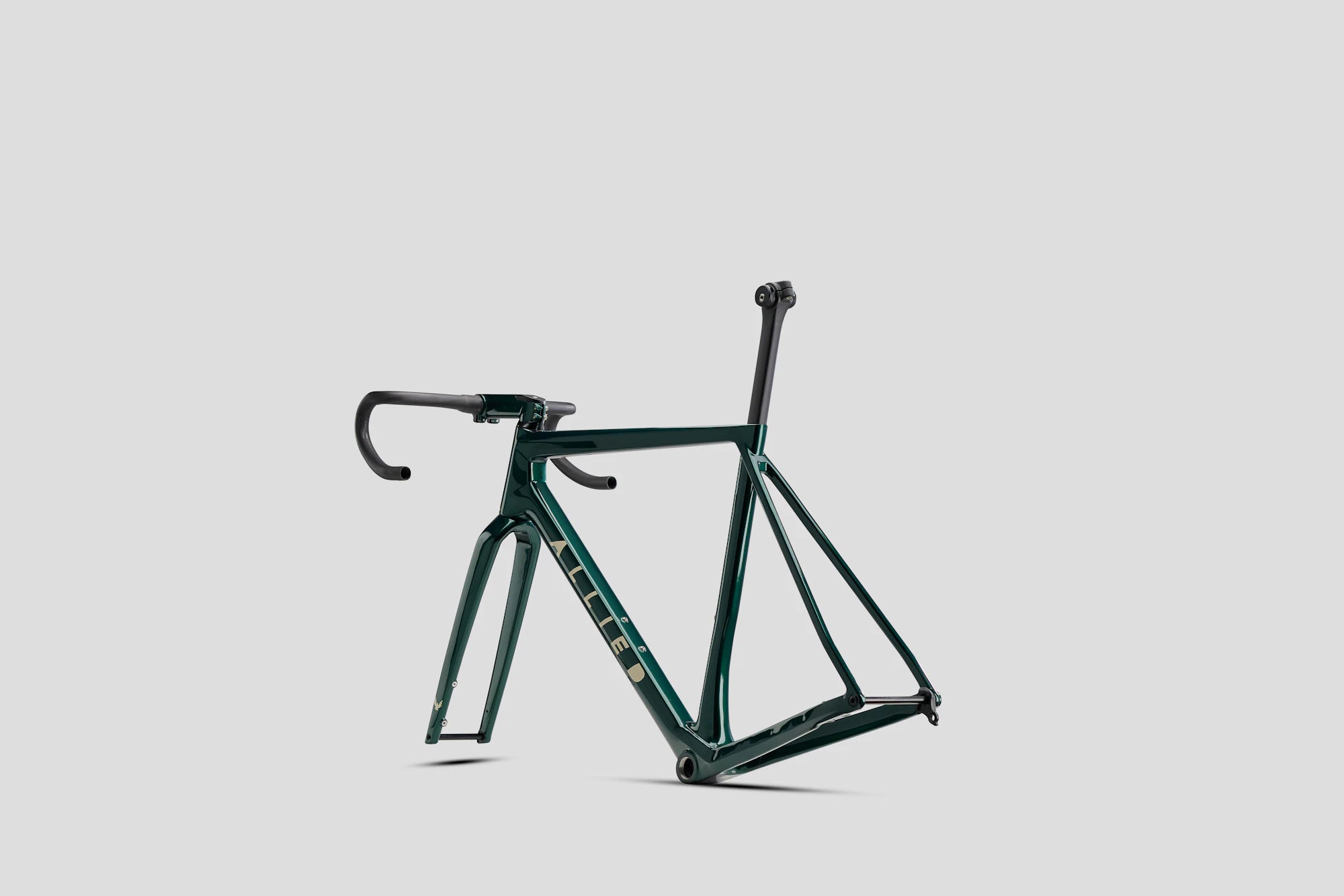

  • ECHO Frameset Kit
  • ECHO Frameset Kit
  • ECHO Frameset Kit
  • ECHO Frameset Kit
  • ECHO Frameset Kit
  • ECHO Frameset Kit
  • ECHO Frameset Kit
Geometry

ECHO begins with a road-first fit that’s been subtly rebalanced for modern distance. Its geometry delivers speed with staying power that’s quick to respond under pressure, yet composed enough to carry that pace deep into the ride. Fast, not fragile, and always ready for what’s next.

Technical drawing of a bicycle frame with labeled measurements on a white background
All units are in Millimeters or Degrees
47 52 54 56 58 61
a Stack 520 535 555 575 600 625
b Reach 362 371 377 384 392 400
c Effective top tube 511 524 536 554 570 585
d Seat tube length 440 470 500 540 560 580
e Head tube length 94 110 127 148 175 201
f Head tube angle 71° 71° 72° 72° 72° 72°
g Seat tube angle 74° 74° 74° 73.5° 73.5° 73.5°
h Bottom bracket drop 80 80 80 80 80 80
i Chainstay length 425 425 425 425 425 425
j Fork length 390 390 390 390 390 390
k Wheelbase 989 1003.2 1006.6 1020.1 1036.2 1052.3
l Standover height 715 740 768 801 822 843
m Fork rake 55 55 55 55 55 55
n Front center 572 586 589 603 619 635
Size Guide

This chart offers a general size recommendation based on height. Since fit is personal, our team can help dial in the right size using your measurements and current bike geometry. Contact us at support@alliedcycleworks.com for a custom fit recommendation.

47 Reach: 362 mm
150cm 4'11" - 160cm 5'3"
52 Reach: 371 mm
157cm 5'2" - 172cm 5'8"
54 Reach: 377 mm
170cm 5'7" - 177cm 5'10"
56 Reach: 384 mm
175cm 5'9" - 182cm 6'0"
58 Reach: 392 mm
180cm 5'11" - 188cm 6'2"
61 Reach: 400mm
182cm 6'0" - 195cm 6'4"
