WHEN LESS DELIVERS MORE
FITZ redefines featherweight trail bikes without watering down the ride. Light enough to disappear beneath you. Capable enough to demand commitment. With 140mm of travel and an exceptionally lean build, FITZ proves that less mass doesn’t dull the ride—it sharpens it.
Category
Trail
Travel
140MM
Material
Carbon
Frame Weight
2495g (Size L)
Reviews
Taking Trail Back to the Roots
Over the past years, capability became synonymous with added features, and weight was accepted as the cost of admission. FITZ challenges that assumption. It’s a featherweight trail bike that delivers control, composure, and confidence—built for riders who value precision over excess.
Where Light Meets Capable
FITZ is where lightweight efficiency and trail capability converge. With 140mm of composed travel, it remains calm and controlled through steep, technical terrain, yet feels almost weightless when the trail turns skyward. It’s a balance that’s rare in trail bikes today—one that rewards effort, sharpens rider input, and delivers confidence without asking you to carry more bike than you need.
Key Features

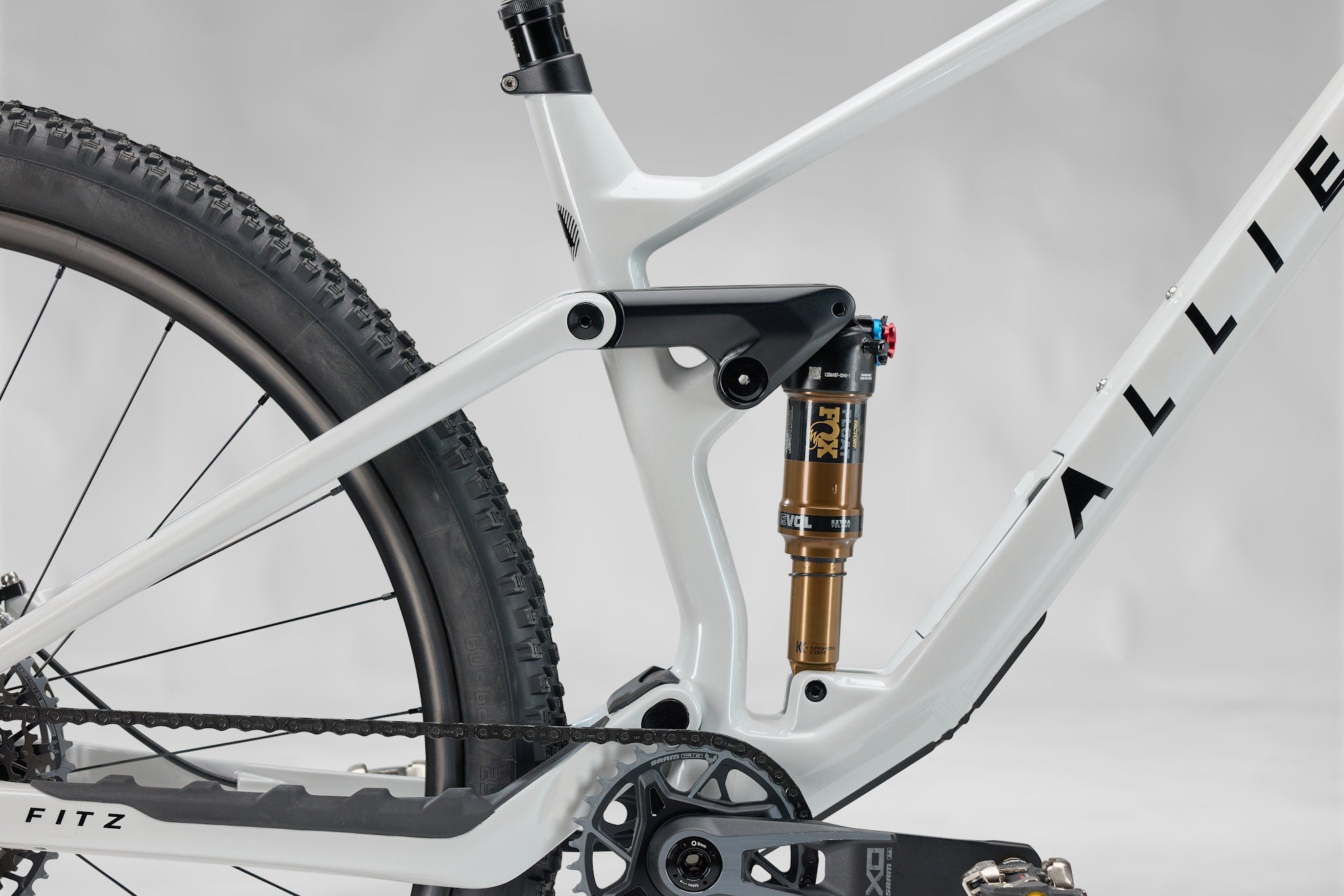

A straight seat tube allows for increased dropper post insertion, giving riders the option to run longer-travel droppers for added clearance when the trail tips down.

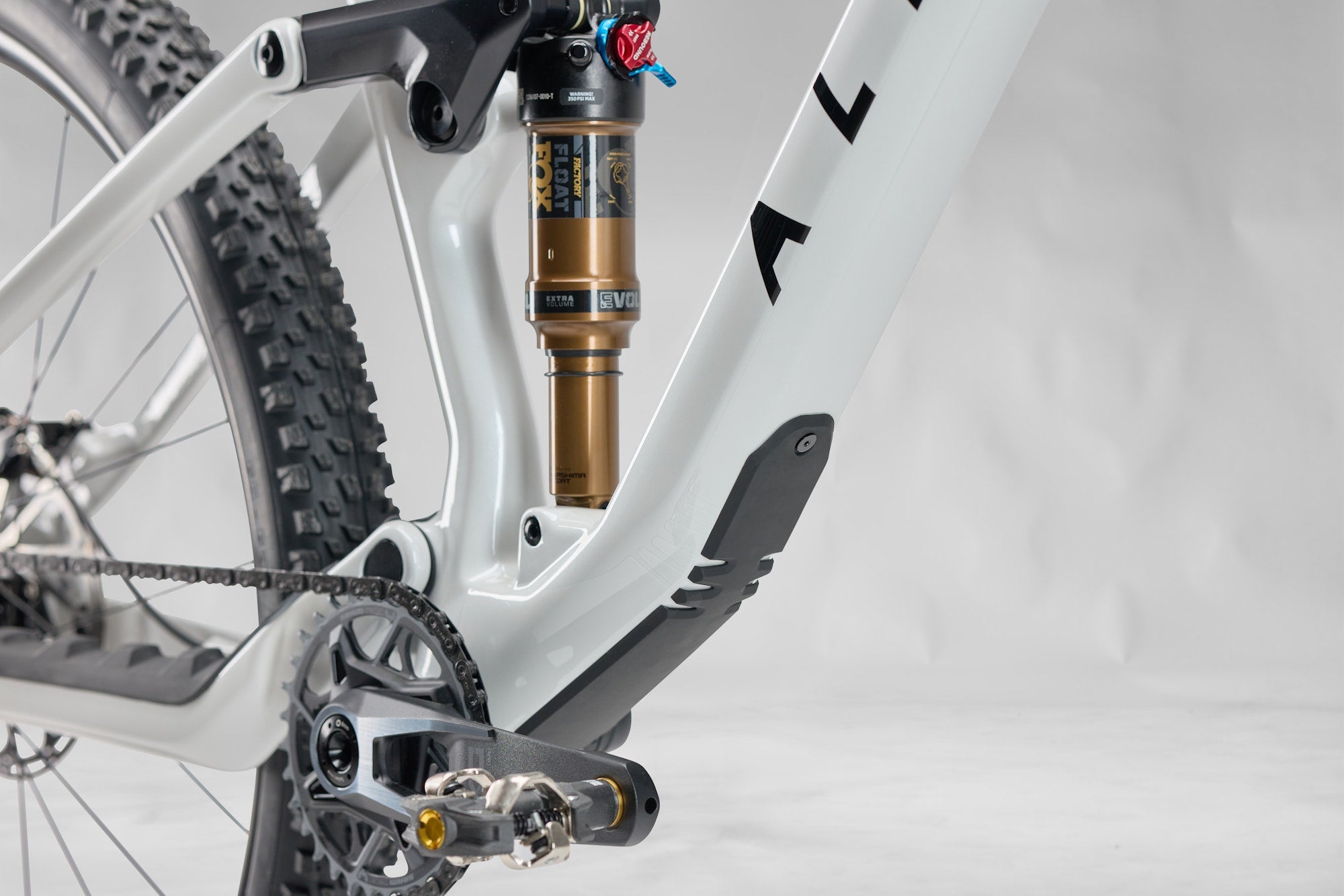

Strategically placed downtube and chainstay protection shields the frame from trail debris and shuttle wear while keeping the ride quiet.
A magnetic internal storage system keeps essentials stashed neatly inside the frame. No bolting, no strapping, no rattles, and nothing to distract from the ride.

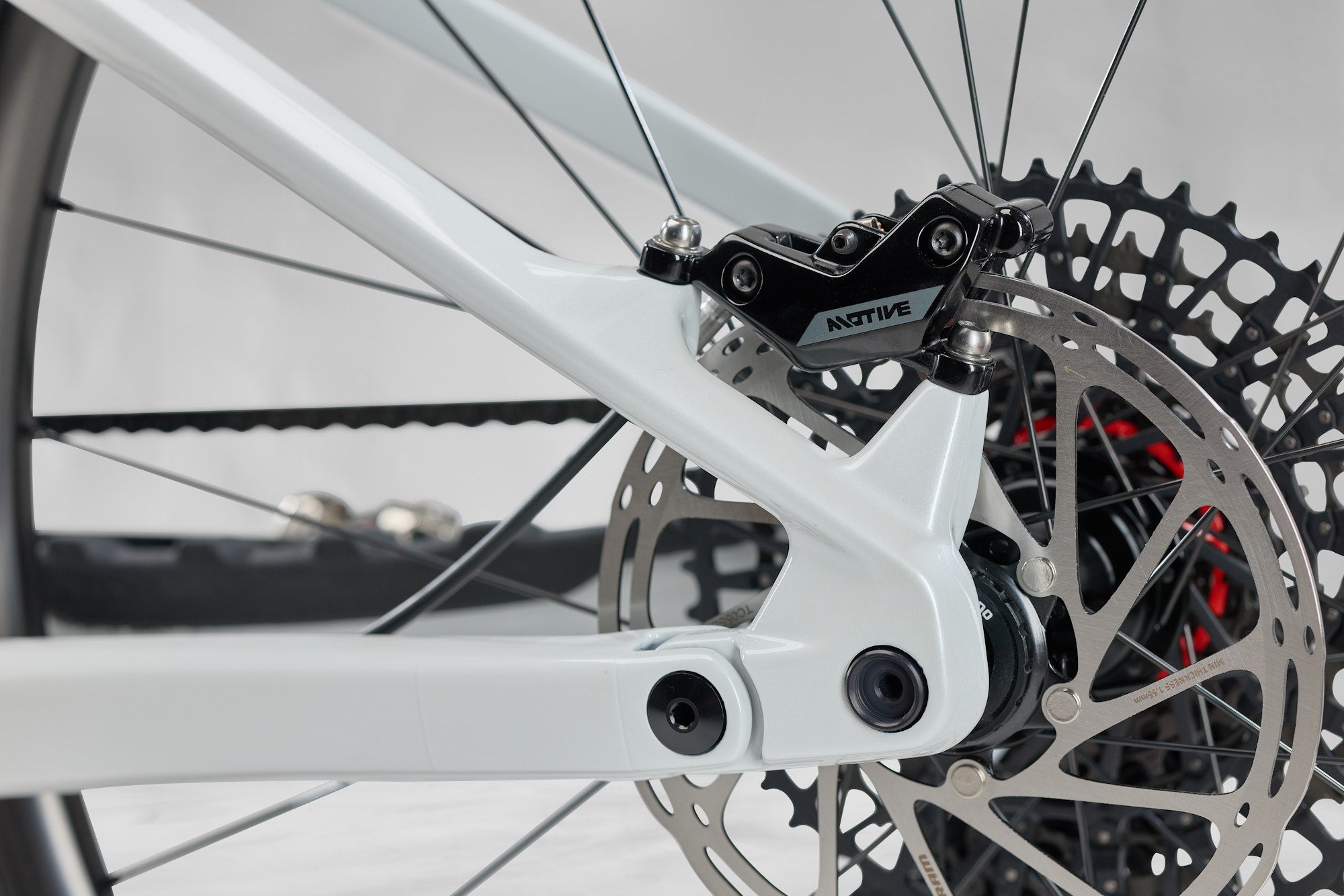

Consistent braking power and straightforward setup come standard on FITZ. The post-mount 180mm rear brake interface delivers reliable performance and broad compatibility with modern brake systems—simple, predictable, and easy to set up.

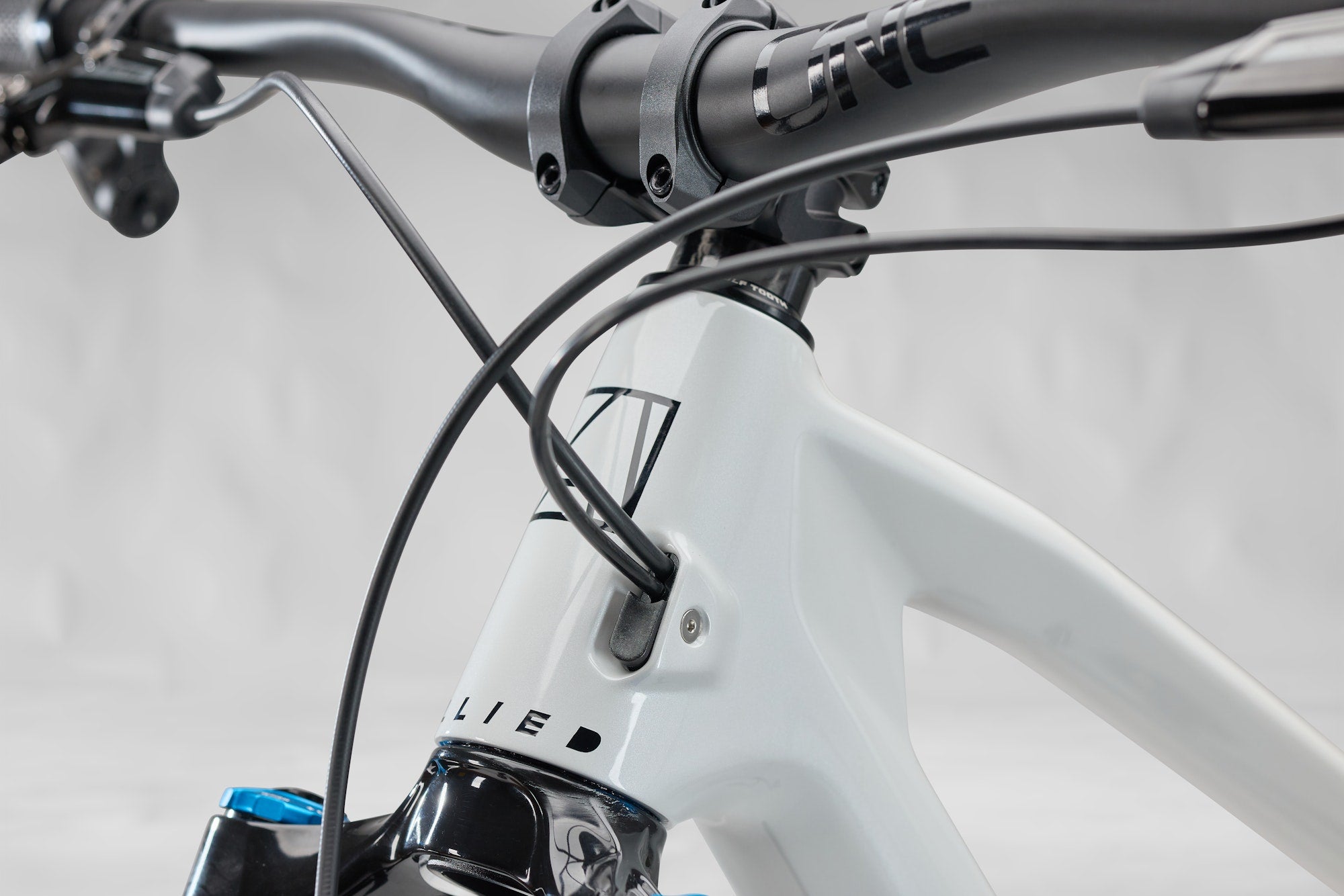

Internal routing channels guide cables cleanly through the frame, keeping your setup tidy, quiet, and straightforward to service.
A streamlined layout and broad component compatibility keep FITZ simple to service and consistent in performance, season after season.
FITZ uses the Universal Derailleur Hanger standard for use with SRAM Transmission and other modern drivetrains. By relying on a UDH, FITZ allows for broad compatibility and easy-to-source parts.
GOT QUESTIONS?
Speak to our team either over the phone or message us. We’re here to answer all your questions and get you stoked on a new steed.
With a long reach and a slack 64.5° head tube angle, FITZ is built for stability without sacrificing agility. The geometry keeps the bike composed at speed and confident through technical terrain, delivering control you can trust as conditions change.
| SM | MD | LG | XL | |
|---|---|---|---|---|
| a Stack | 610.7 | 619.7 | 633.3 | 646.8 |
| b Reach | 430 | 455 | 480 | 505 |
| c Effective top tube | 575 | 603 | 632 | 660 |
| d Seat tube length | 380 | 410 | 430 | 460 |
| e Head tube length | 95 | 105 | 120 | 135 |
| f Head tube angle | 64.5° | 64.5° | 64.5° | 64.5° |
| g Seat tube angle | 76.6° | 76.6° | 76.5° | 76.5° |
| h Bottom bracket drop | 35 | 35 | 35 | 35 |
| i Chainstay length | 440 | 440 | 440 | 440 |
| k Wheelbase | 1193 | 1223 | 1254 | 1286 |
| l Standover height | 797.2 | 814.6 | 832.4 | 854.9 |
| n Front center | 753.3 | 782.6 | 814.1 | 845.5 |
| o Wheel size | 29 | 29 | 29 | 29 |
This chart offers a general size recommendation based on height. Since fit is personal, our team can help dial in the right size using your measurements and current bike geometry. Contact us at support@alliedcycleworks.com for a custom fit recommendation.
