FITZ SRAM XX SL Eagle Transmission Bike

Build your Fitz

Trail

Build Your Fitz
Fitz
FITZ SRAM XX SL Eagle Transmission Bike

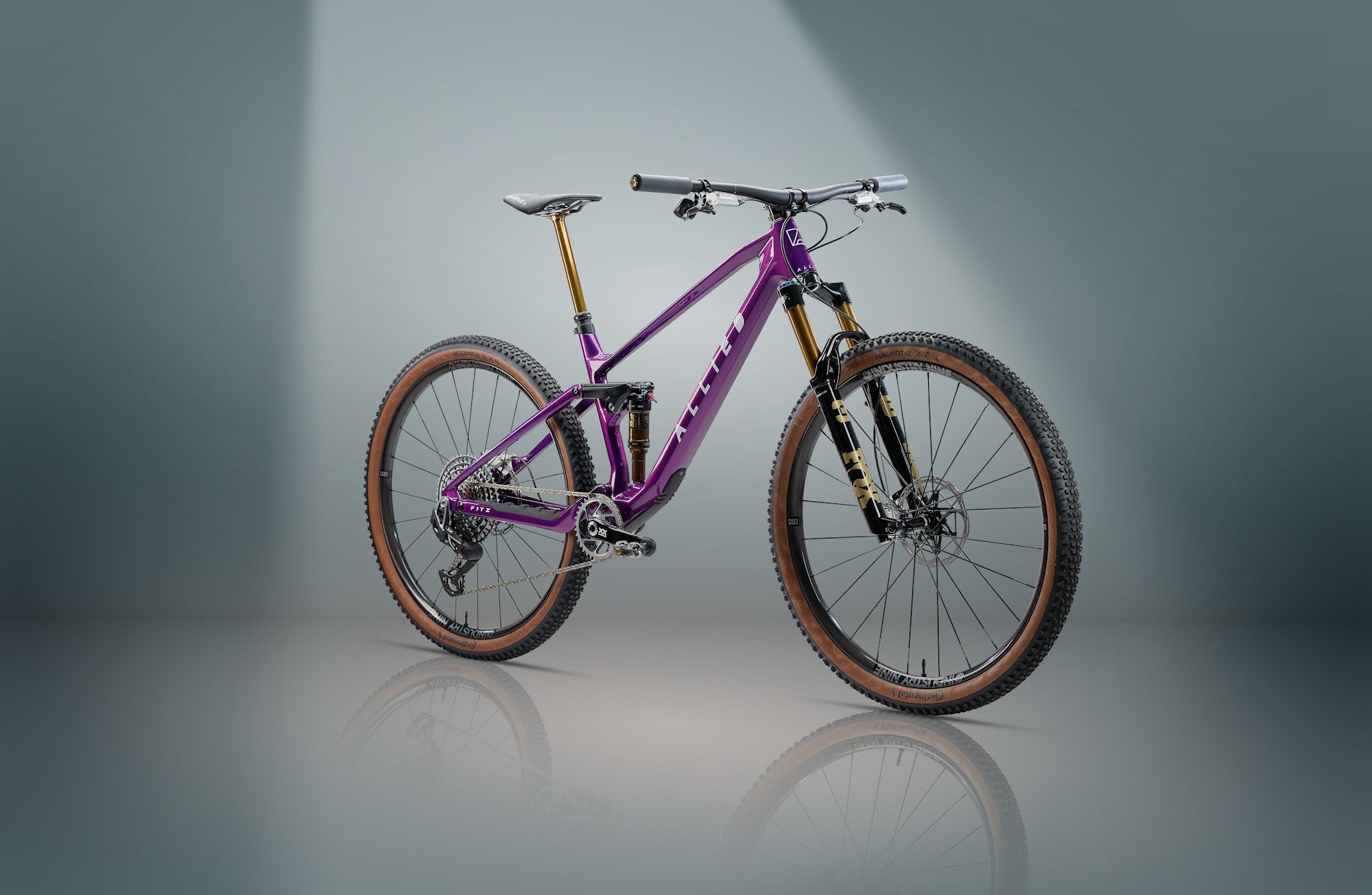

The pinnacle FITZ build—light, precise, and uncompromised. Outfitted with SRAM XX SL Transmission, FOX Factory 36 SL suspension, and Industry Nine SOLiX Trail Carbon wheels, it’s everything a featherweight trail bike should be, with nothing left to add.

Bike image may not reflect actual build selections

Trail

Build Your Fitz
Fitz
FITZ SRAM XX SL Eagle Transmission Bike

The pinnacle FITZ build—light, precise, and uncompromised. Outfitted with SRAM XX SL Transmission, FOX Factory 36 SL suspension, and Industry Nine SOLiX Trail Carbon wheels, it’s everything a featherweight trail bike should be, with nothing left to add.

  • Carbon 140mm frame
  • SRAM XX SL ultralight transmission
  • Industry Nine SOLiX Trail Carbon wheels

Your build highlights

These components are required:

Your total:

Your total:

Spec’d For Precision

Built around SRAM’s lightest and most precise transmission, this setup prioritizes efficiency, control, and responsiveness without excess. Every component is selected to preserve FITZ’s defining character—a featherweight trail bike that rewards effort and stays composed when the trail is exacting.

Calm Through The Chaos

A FOX Factory SL suspension package is tuned to match FITZ’s lightweight trail intent, delivering traction and support without muting trail feel. Supple off the top and composed through the mid-stroke, it keeps the ride lively and predictable across technical terrain and long days in the saddle.

Built To Hold Your Line

Industry Nine SOLiX Trail Carbon wheels pair low weight with precise tracking, reinforcing FITZ’s quick acceleration and confident handling. The ALLIED DUET cockpit system completes the build with stiffness, control, and adjustability—keeping input direct and the front end exactly where you want it.

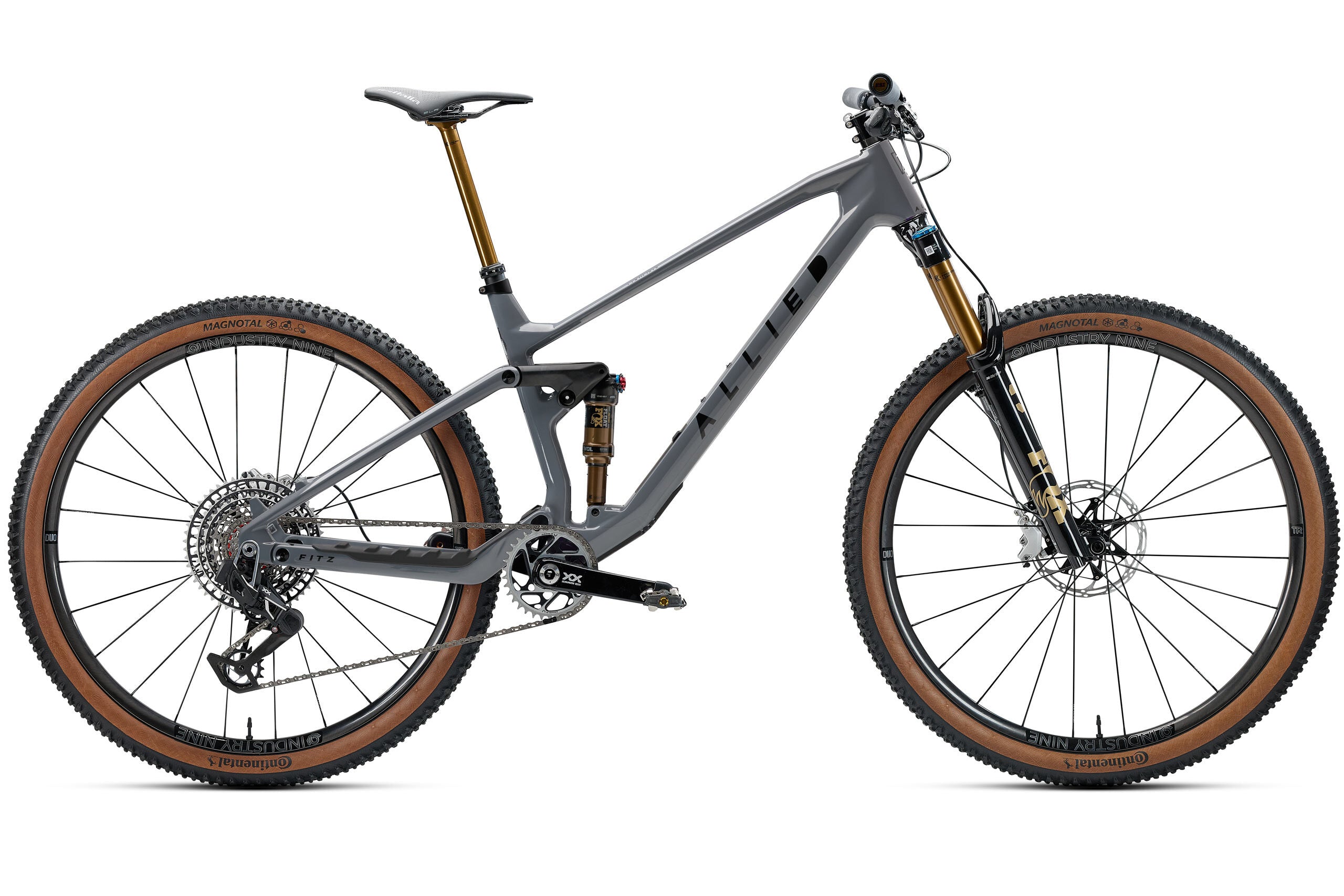

  • FITZ SRAM XX SL Eagle Transmission Bike
  • FITZ SRAM XX SL Eagle Transmission Bike
  • FITZ SRAM XX SL Eagle Transmission Bike
  • FITZ SRAM XX SL Eagle Transmission Bike

The specs below reflect the default Build Kit and do not account for customizations made in the Bike Builder. See your Build Summary above for custom choices.

Fork Fox Factory 36 SL Grip X 140
Front derailleur N/A
Rear derailleur SRAM XX SL Eagle Transmission
Shift levers SRAM AXS Pod Ultimate
Cassette SRAM 1299 XX SL Eagle 10-52
Chain SRAM XX T-TYPE Flat Top
Crankset SRAM XX SL Eagle Transmission 34T
Bottom bracket SRAM Dub 73 BSA
Brakes SRAM Motive Ultimate 4 Piston 180 Front / 180 Rear
Handlebar ALLIED Duet HB11 Carbon Riser Bar
Handlebar tape OneUp Lock-On Grips
Stem ALLIED Duet
Saddle Selle Italia SLR ADVAN Manganese
Seatpost Rock Shox Reverb AXS
Wheelset Industry Nine Solix Trail Carbon
Tires Continental Magnotal Grip Trail 29x2.4
Geometry

With a long reach and a slack 64.5° head tube angle, FITZ is built for stability without sacrificing agility. The geometry keeps the bike composed at speed and confident through technical terrain, delivering control you can trust as conditions change.

All units are in Millimeters or Degrees
SM MD LG XL
a Stack 610.7 619.7 633.3 646.8
b Reach 430 455 480 505
c Effective top tube 575 603 632 660
d Seat tube length 380 410 430 460
e Head tube length 95 105 120 135
f Head tube angle 64.5° 64.5° 64.5° 64.5°
g Seat tube angle 76.6° 76.6° 76.5° 76.5°
h Bottom bracket drop 35 35 35 35
i Chainstay length 440 440 440 440
k Wheelbase 1193 1223 1254 1286
l Standover height 797.2 814.6 832.4 854.9
n Front center 753.3 782.6 814.1 845.5
o Wheel size 29 29 29 29
Size Guide

This chart offers a general size recommendation based on height. Since fit is personal, our team can help dial in the right size using your measurements and current bike geometry. Contact us at support@alliedcycleworks.com for a custom fit recommendation.

Small Reach: 430mm
157cm 5'2" - 167cm 5'7"
Medium Reach: 455mm
162cm 5'6" - 177cm 5'10"
Large Reach: 480mm
172cm 5'9" - 188cm 6'0"
X-Large Reach: 505mm
180cm 5'11" - 195cm 6'5"

Lifetime Warranty

Every ALLIED frameset is backed by our lifetime warranty.

Flexible Payments

Flexible financing from Affirm lets you choose the payment plan that works best for you.

Bike Assembly

Unboxing & Assembling your new ALLIED bike.

Other Build Kits
