Build Your Fitz
Fitz
FITZ Frameset

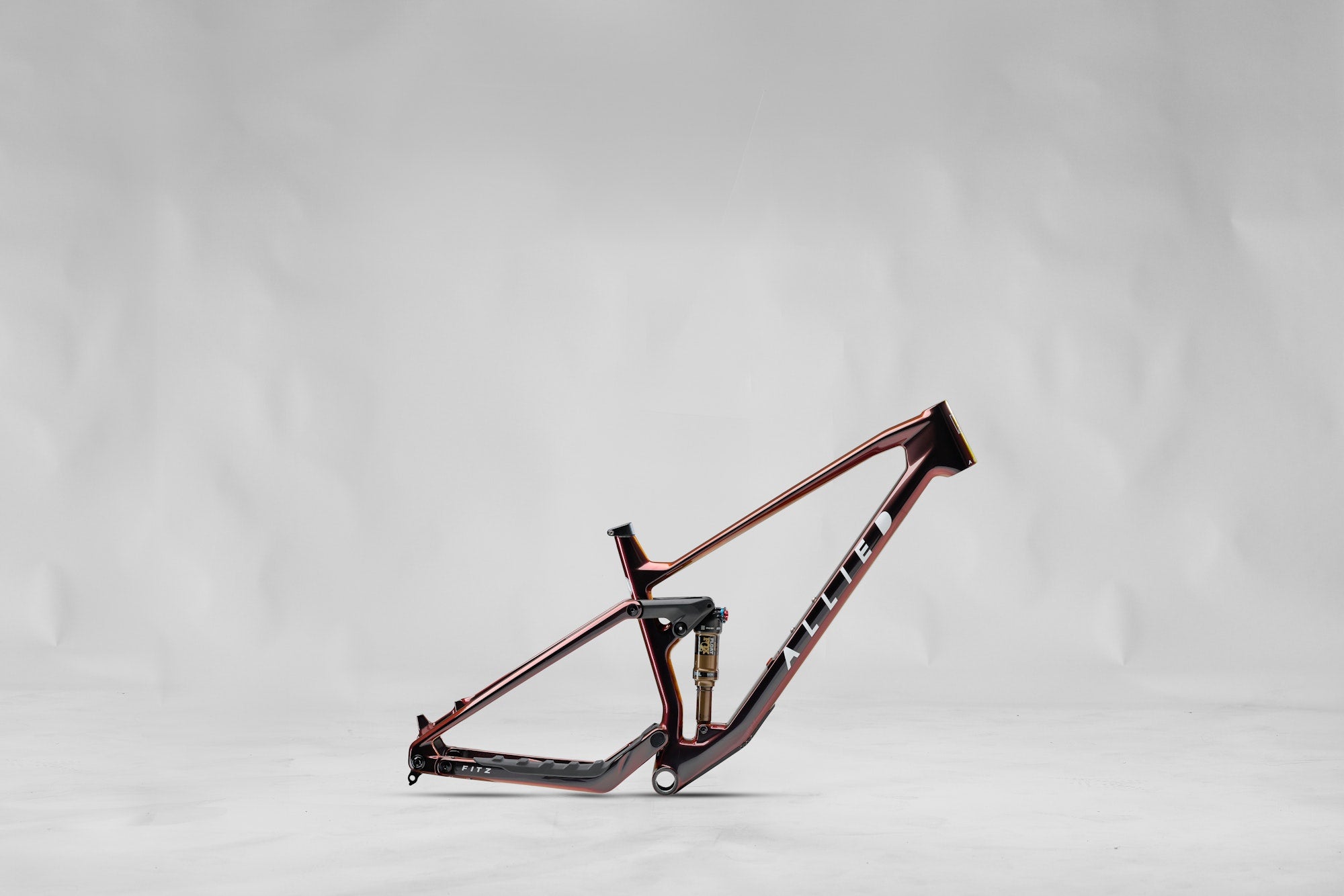

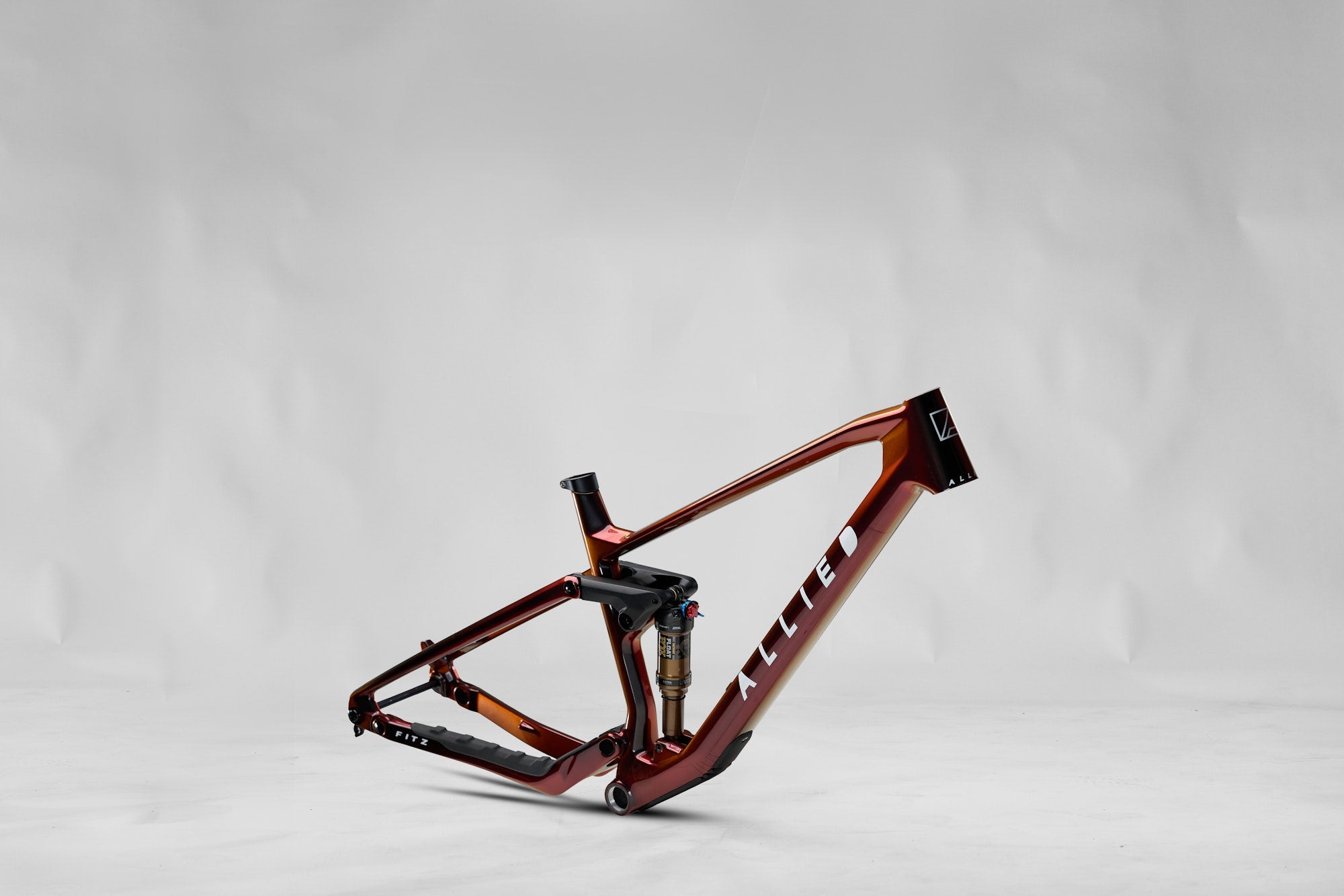

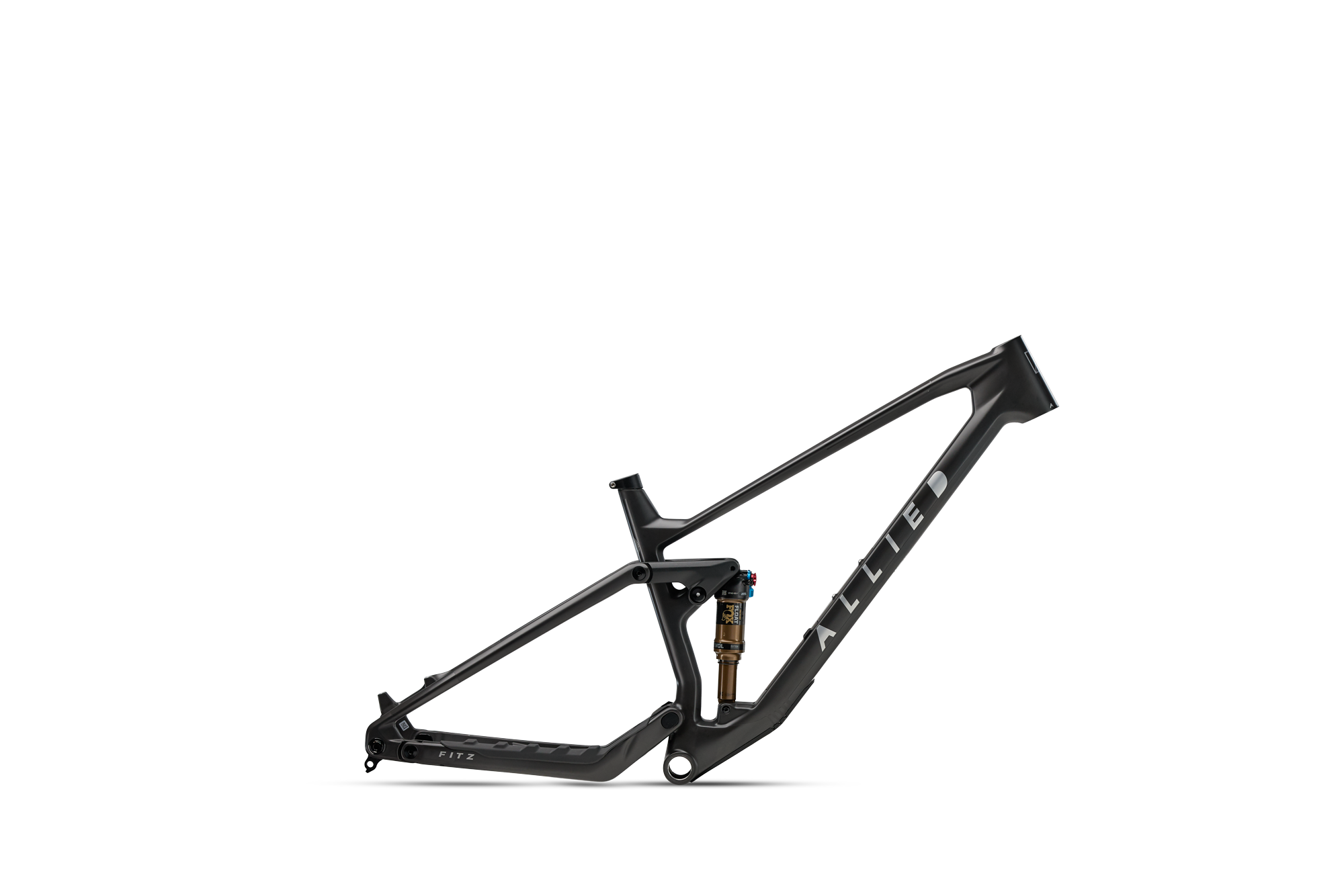

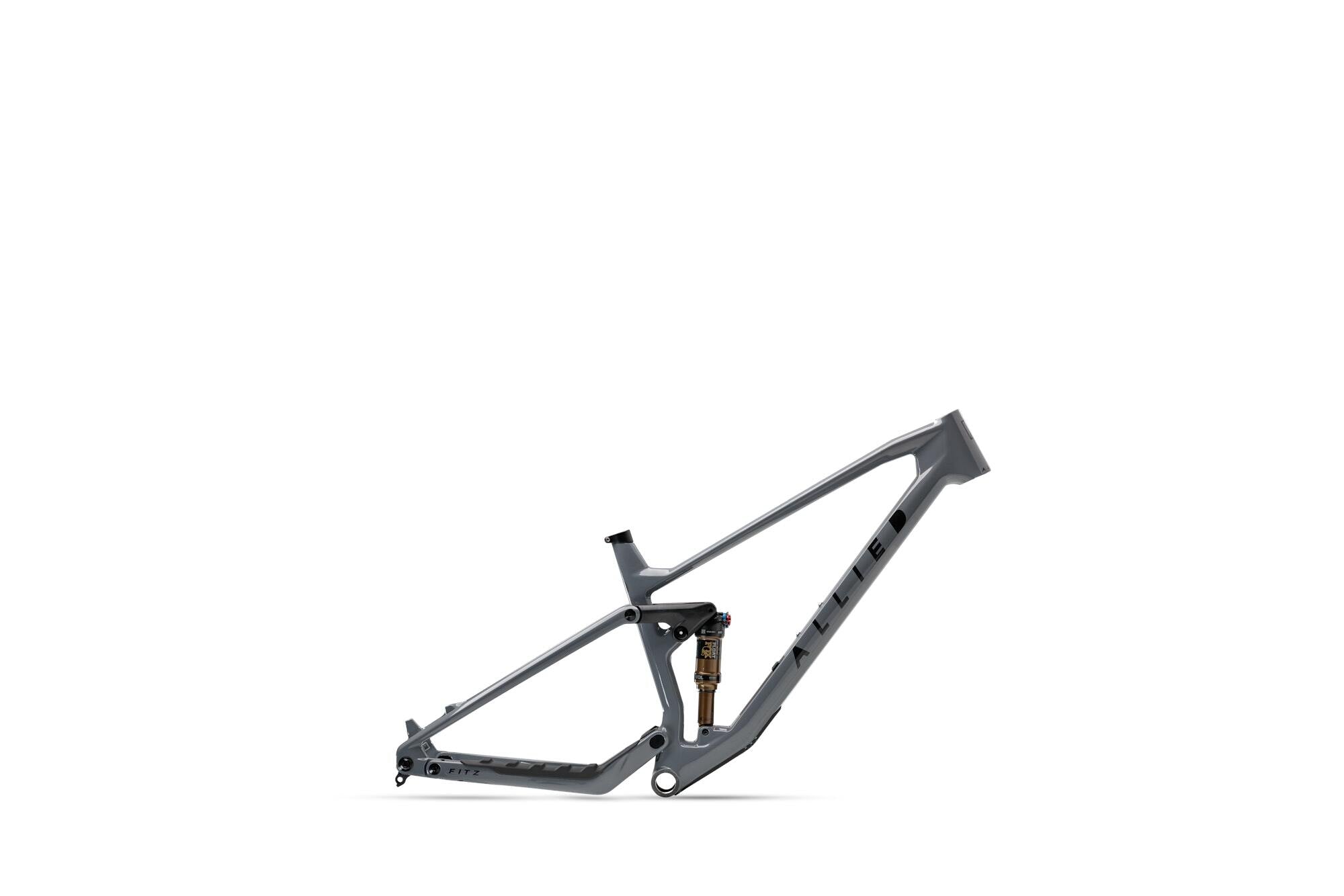

The FITZ frameset is where your dream trail bike begins. A featherweight carbon frame paired with a FOX Factory FLOAT 210x50 shock provides the ideal foundation for a fully custom build, from component choice to paint.

Bike image may not reflect actual build selections

Trail

Build Your Fitz
Fitz
FITZ Frameset

The FITZ frameset is where your dream trail bike begins. A featherweight carbon frame paired with a FOX Factory FLOAT 210x50 shock provides the ideal foundation for a fully custom build, from component choice to paint.

  • Carbon 140mm frame
  • FOX Factory suspension
  • Wolf Tooth Premium Headset

Your build highlights

These components are required:

Your total:

Your total:

Taking Trail Back to the Roots

Over the past years, capability became synonymous with added features, and weight was accepted as the cost of admission. FITZ challenges that assumption. It’s a featherweight trail bike that delivers control, composure, and confidence—built for riders who value precision over excess.

Where Light Meets Capable

FITZ is where lightweight efficiency and trail capability converge. With 140mm of composed travel, it remains calm and controlled through steep, technical terrain, yet feels almost weightless when the trail turns skyward. It’s a balance that’s rare in trail bikes today—one that rewards effort, sharpens rider input, and delivers confidence without asking you to carry more bike than you need.
  • FITZ Frameset
  • FITZ Frameset
  • FITZ Frameset
  • FITZ Frameset

The specs below reflect the default Build Kit and do not account for customizations made in the Bike Builder. See your Build Summary above for custom choices.

Fork -
Front derailleur -
Rear derailleur -
Shift levers -
Cassette -
Chain -
Crankset -
Bottom bracket -
Brakes -
Handlebar -
Handlebar tape -
Stem -
Saddle -
Seatpost -
Wheelset -
Tires -
Geometry

With a long reach and a slack 64.5° head tube angle, FITZ is built for stability without sacrificing agility. The geometry keeps the bike composed at speed and confident through technical terrain, delivering control you can trust as conditions change.

All units are in Millimeters or Degrees
SM MD LG XL
a Stack 610.7 619.7 633.3 646.8
b Reach 430 455 480 505
c Effective top tube 575 603 632 660
d Seat tube length 380 410 430 460
e Head tube length 95 105 120 135
f Head tube angle 64.5° 64.5° 64.5° 64.5°
g Seat tube angle 76.6° 76.6° 76.5° 76.5°
h Bottom bracket drop 35 35 35 35
i Chainstay length 440 440 440 440
k Wheelbase 1193 1223 1254 1286
l Standover height 797.2 814.6 832.4 854.9
n Front center 753.3 782.6 814.1 845.5
o Wheel size 29 29 29 29
Size Guide

This chart offers a general size recommendation based on height. Since fit is personal, our team can help dial in the right size using your measurements and current bike geometry. Contact us at support@alliedcycleworks.com for a custom fit recommendation.

Small Reach: 430mm
157cm 5'2" - 167cm 5'7"
Medium Reach: 455mm
162cm 5'6" - 177cm 5'10"
Large Reach: 480mm
172cm 5'9" - 188cm 6'0"
X-Large Reach: 505mm
180cm 5'11" - 195cm 6'5"
