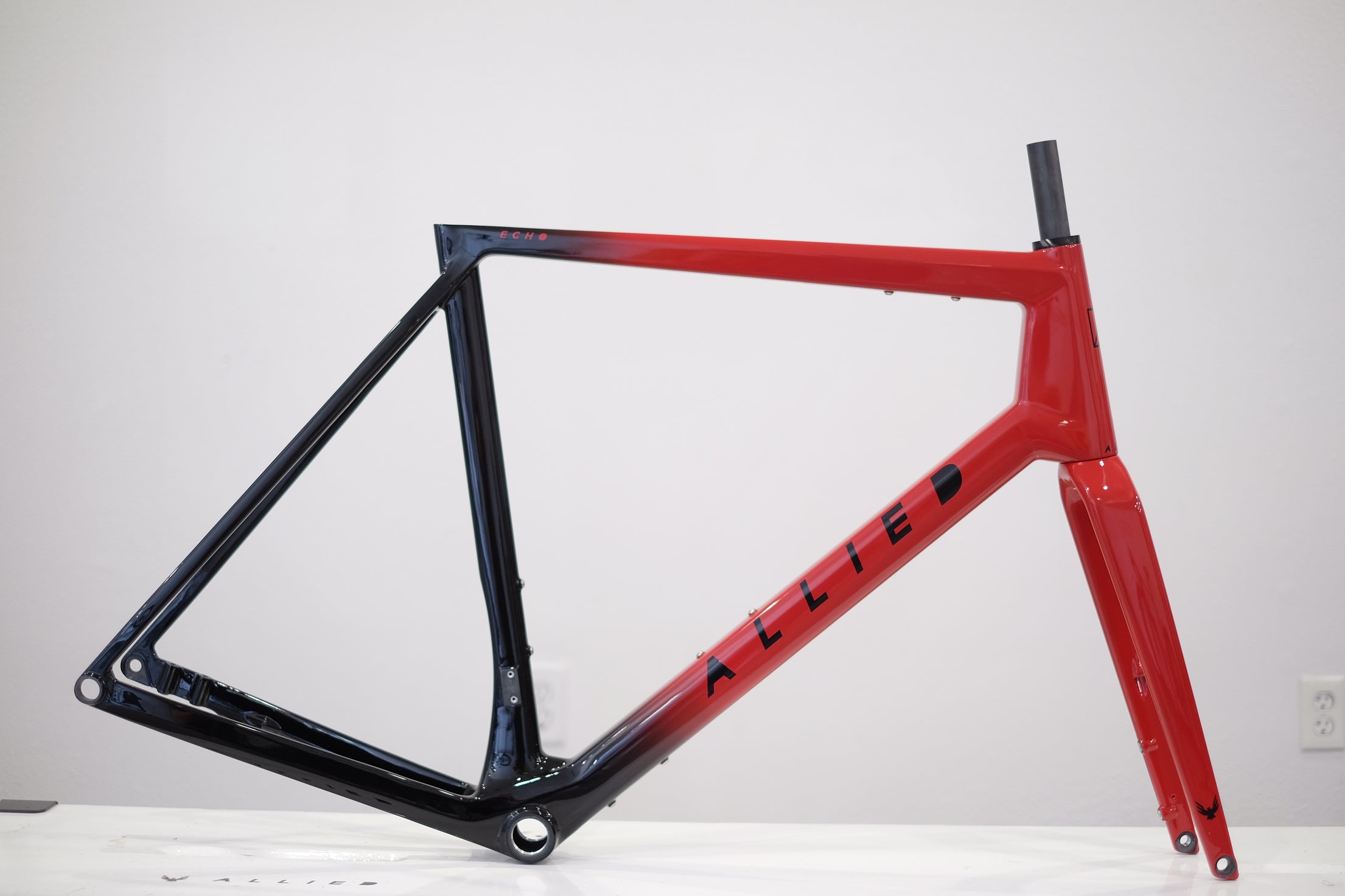

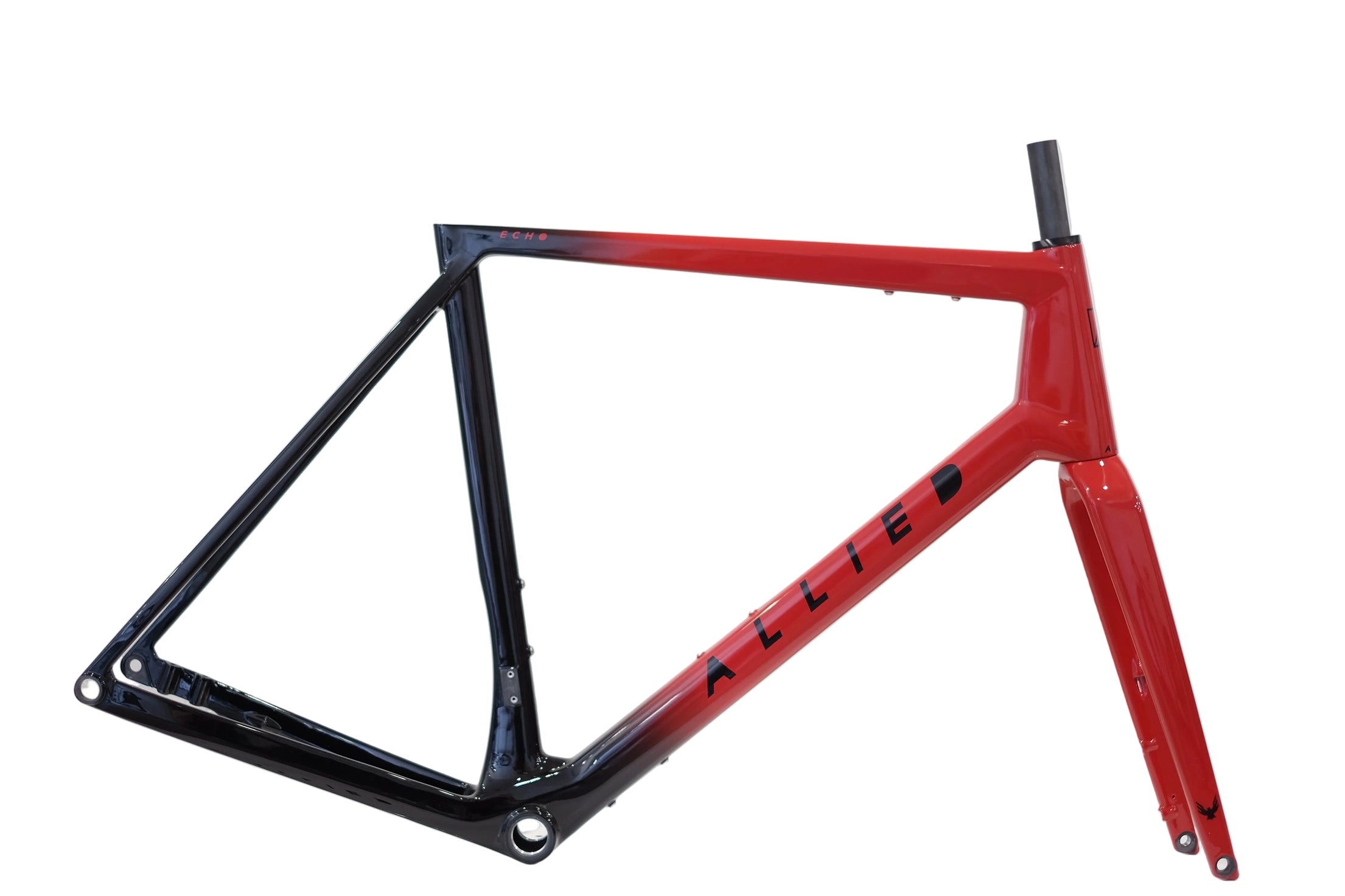

ECHO Frameset 61cm - Victory Red to Black Fade

Geometry

ECHO begins with a road-first fit that’s been subtly rebalanced for modern distance. Its geometry delivers speed with staying power that’s quick to respond under pressure, yet composed enough to carry that pace deep into the ride. Fast, not fragile, and always ready for what’s next.

All units are in Millimeters or Degrees

	47	52	54	56	58	61
a Stack	520	535	555	575	600	625
b Reach	362	371	377	384	392	400
c Effective top tube	511	524	536	554	570	585
d Seat tube length	440	470	500	540	560	580
e Head tube length	94	110	127	148	175	201
f Head tube angle	71°	71°	72°	72°	72°	72°
g Seat tube angle	74°	74°	74°	73.5°	73.5°	73.5°
h Bottom bracket drop	80	80	80	80	80	80
i Chainstay length	425	425	425	425	425	425
j Fork length	390	390	390	390	390	390
k Wheelbase	989	1003.2	1006.6	1020.1	1036.2	1052.3
l Standover height	715	740	768	801	822	843
m Fork rake	55	55	55	55	55	55
n Front center	572	586	589	603	619	635

Size Guide

This chart offers a general size recommendation based on height. Since fit is personal, our team can help dial in the right size using your measurements and current bike geometry. Contact us at support@alliedcycleworks.com for a custom fit recommendation.

IN CM 47 Reach: 362 mm

150cm 4'11" - 160cm 5'3"

52 Reach: 371 mm

157cm 5'2" - 172cm 5'8"

54 Reach: 377 mm

170cm 5'7" - 177cm 5'10"

56 Reach: 384 mm

175cm 5'9" - 182cm 6'0"

58 Reach: 392 mm

180cm 5'11" - 188cm 6'2"

61 Reach: 400mm

182cm 6'0" - 195cm 6'4"
