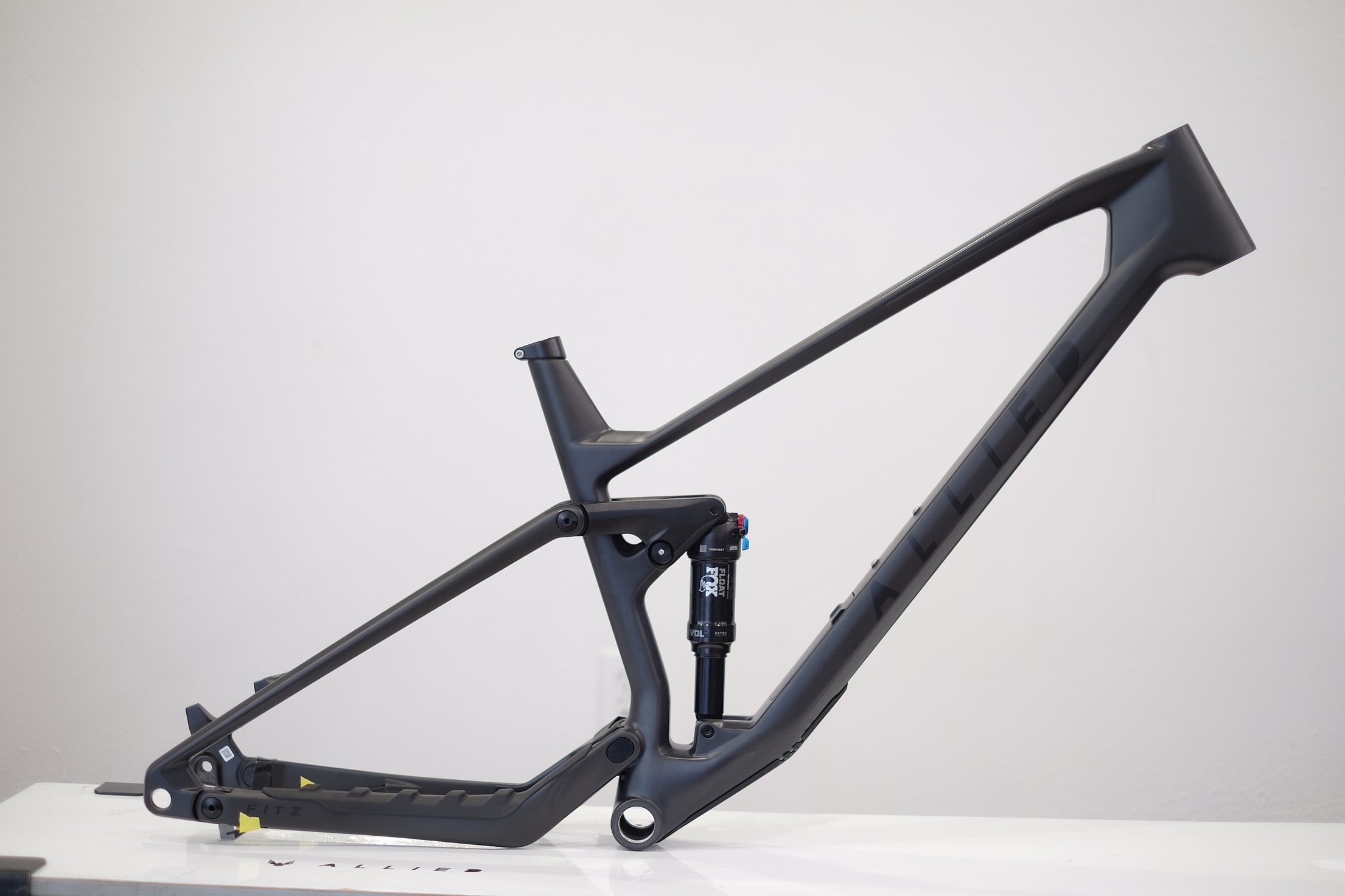

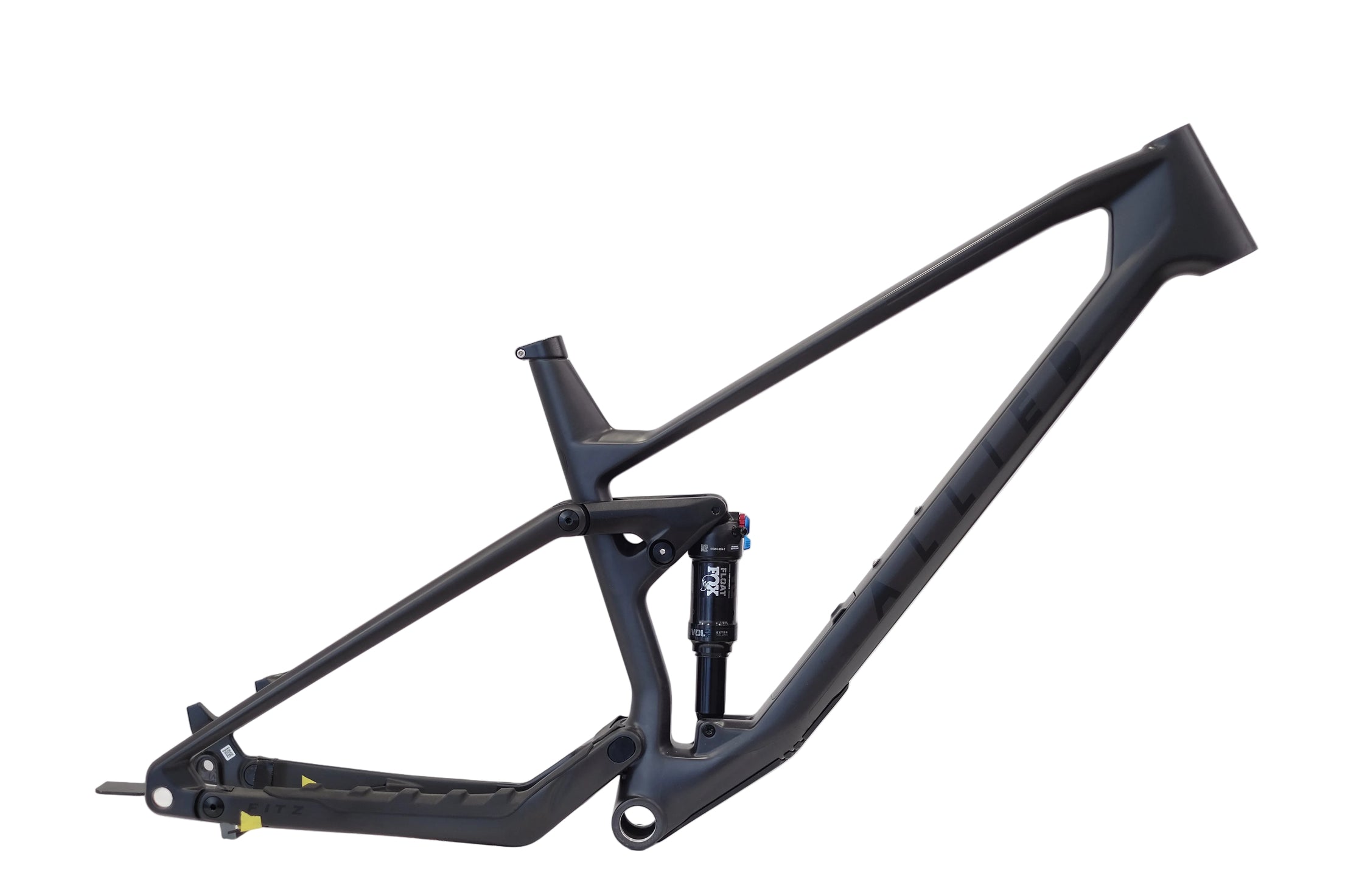

FITZ Frameset XL - Raw Carbon/Black Logos

Geometry

With a long reach and a slack 64.5° head tube angle, FITZ is built for stability without sacrificing agility. The geometry keeps the bike composed at speed and confident through technical terrain, delivering control you can trust as conditions change.

All units are in Millimeters or Degrees

	SM	MD	LG	XL
a Stack	610.7	619.7	633.3	646.8
b Reach	430	455	480	505
c Effective top tube	575	603	632	660
d Seat tube length	380	410	430	460
e Head tube length	95	105	120	135
f Head tube angle	64.5°	64.5°	64.5°	64.5°
g Seat tube angle	76.6°	76.6°	76.5°	76.5°
h Bottom bracket drop	35	35	35	35
i Chainstay length	440	440	440	440
k Wheelbase	1193	1223	1254	1286
l Standover height	797.2	814.6	832.4	854.9
n Front center	753.3	782.6	814.1	845.5
o Wheel size	29	29	29	29

Size Guide

This chart offers a general size recommendation based on height. Since fit is personal, our team can help dial in the right size using your measurements and current bike geometry. Contact us at support@alliedcycleworks.com for a custom fit recommendation.

IN CM Small Reach: 430mm

157cm 5'2" - 167cm 5'7"

Medium Reach: 455mm

162cm 5'6" - 177cm 5'10"

Large Reach: 480mm

172cm 5'9" - 188cm 6'0"

X-Large Reach: 505mm

180cm 5'11" - 195cm 6'5"
