FITZXX SL - Purple Velvet

    Outlet

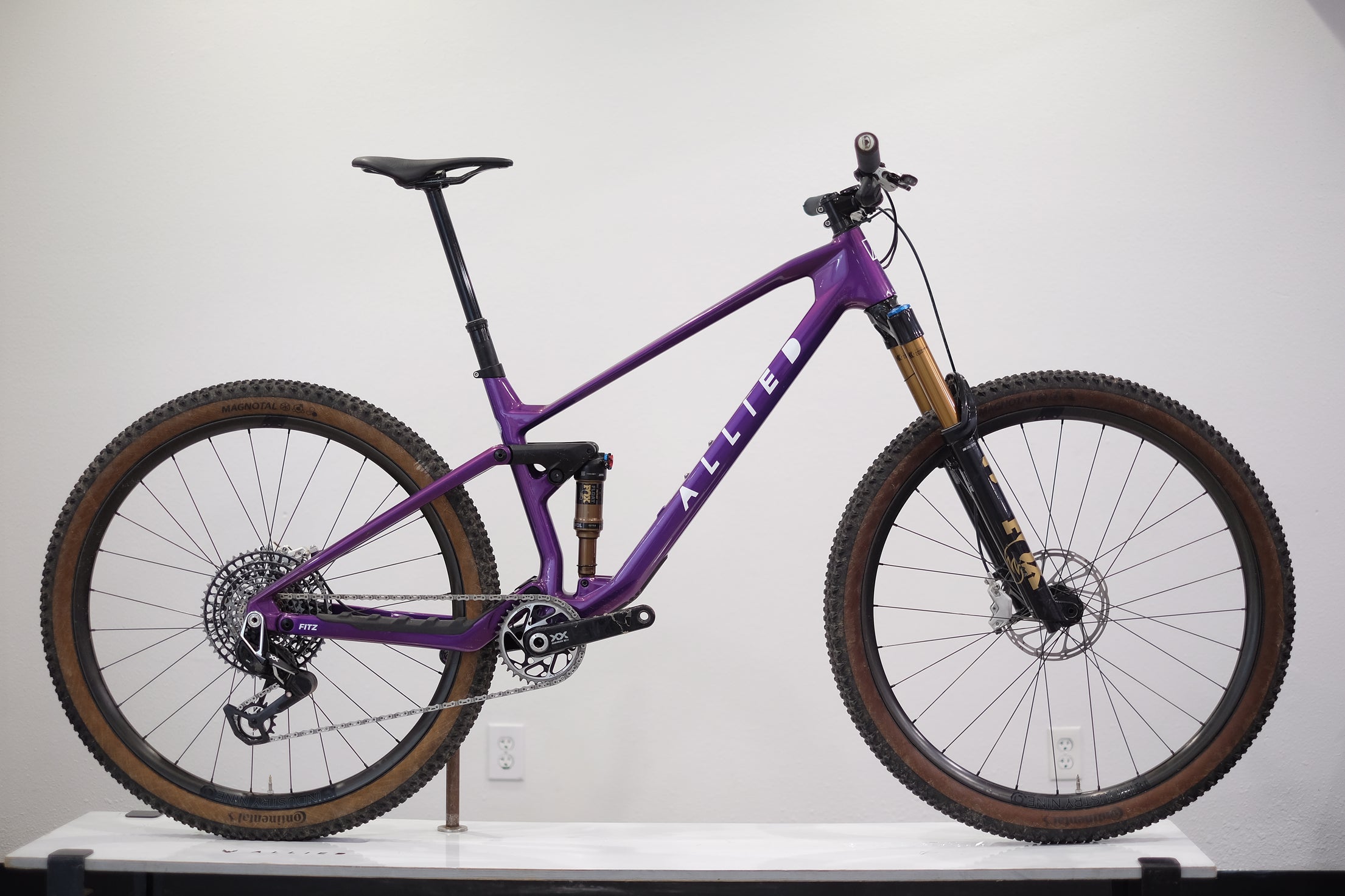

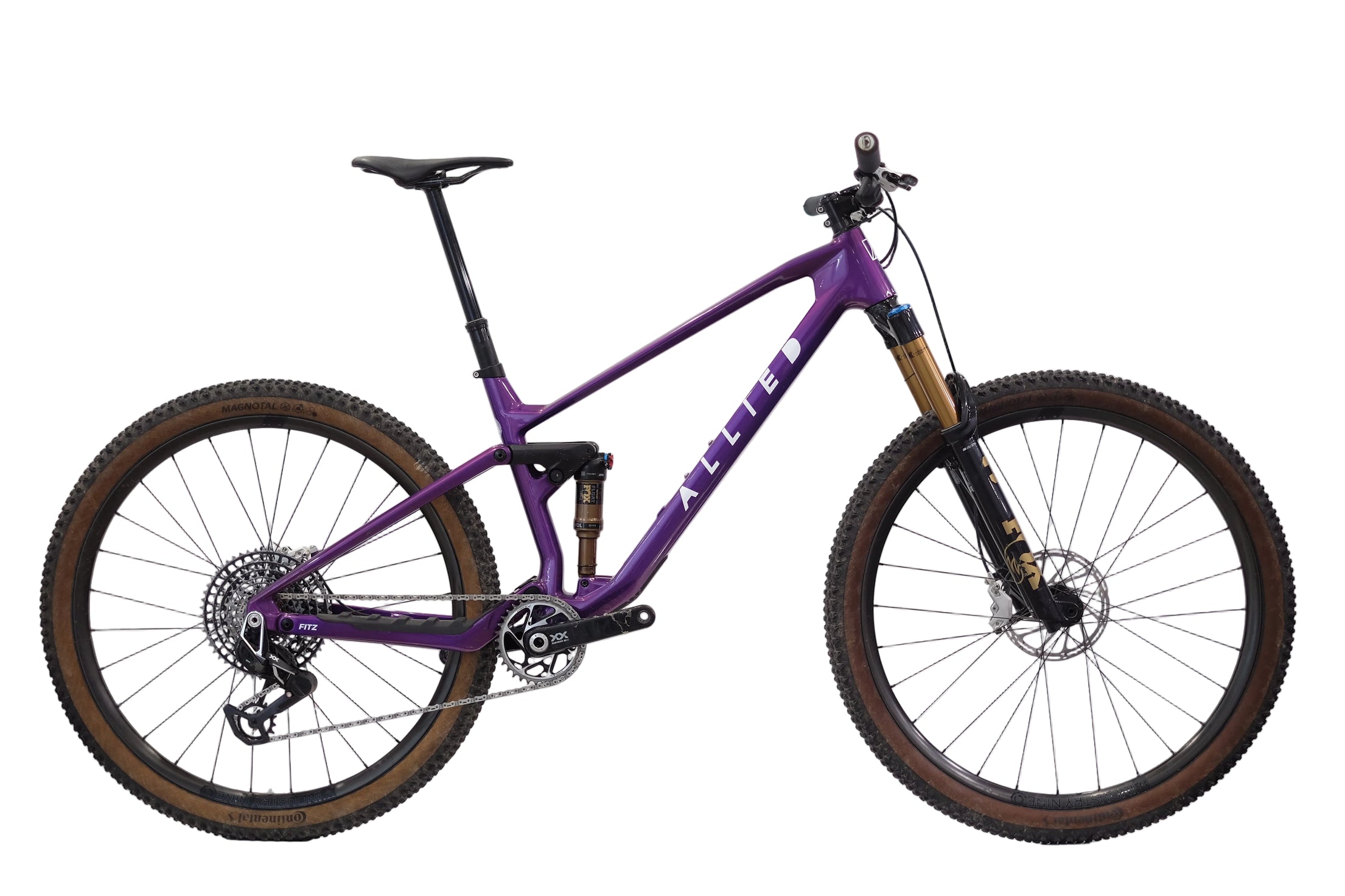

    FITZXX SL - Purple Velvet

    $8,359 Regular price $11,145

    • SRAM XX SL Transmission Drivetrain

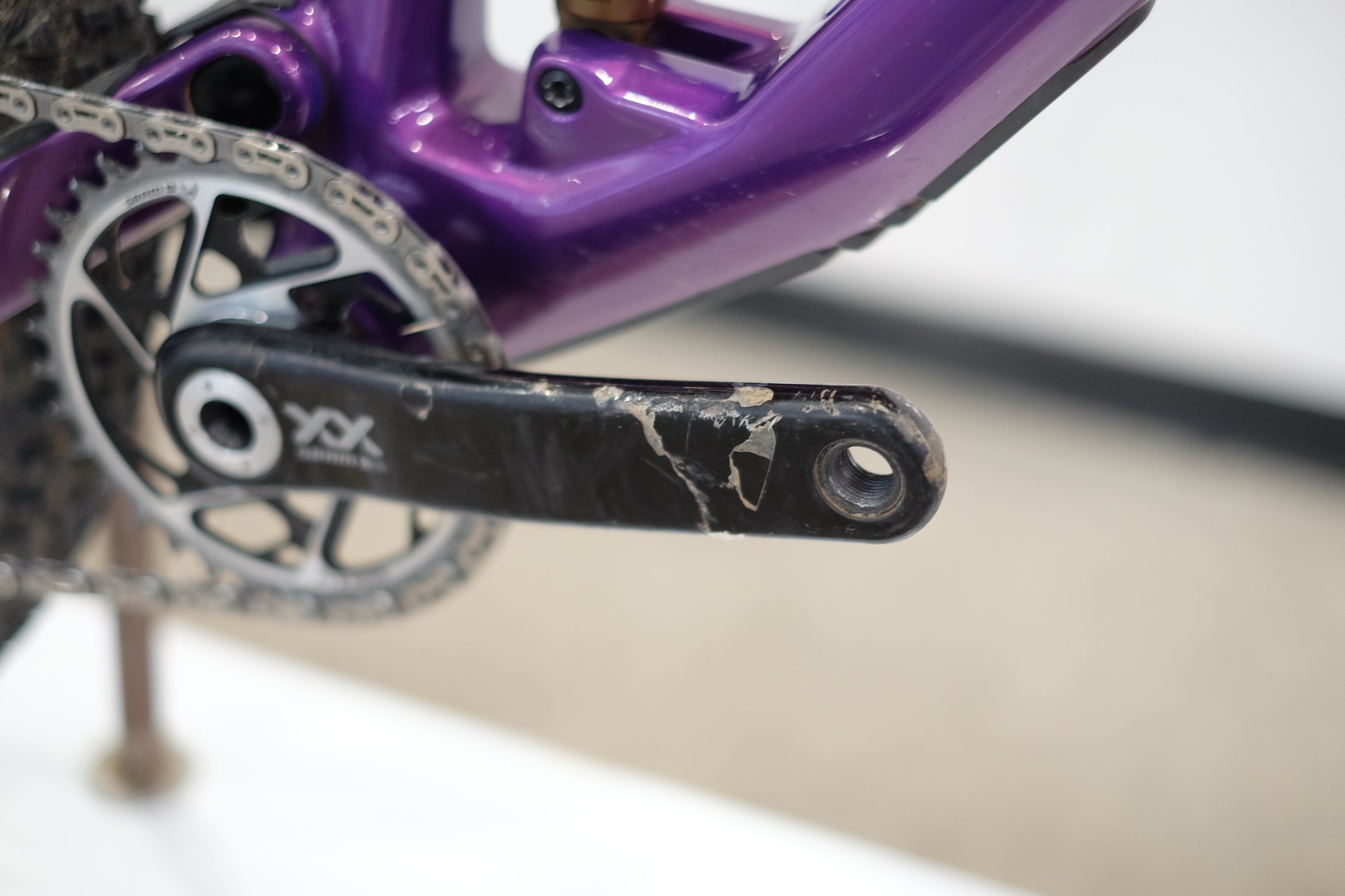

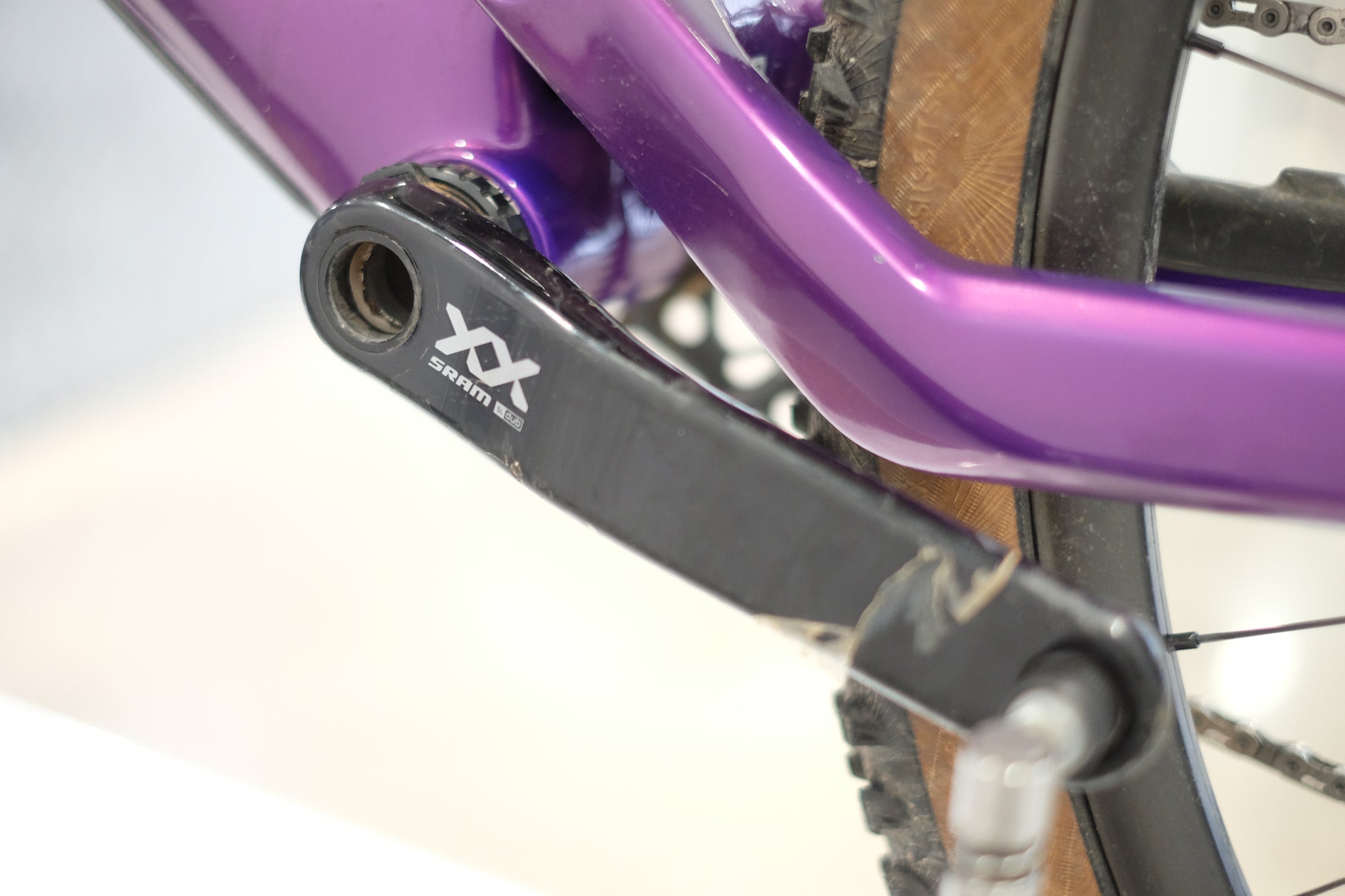

    • SRAM XX SL - 170mm
    • SRAM Motive Ultimate Brakes
    • Fox 36 SL 140mm Suspension
    • OneUp V3 Dropper Post - 210mm
    • Duet Riser Bar / 50mm stem
    • Industry Nine 1/1 Trail Wheelset
    • Continental Magnotal 2.4

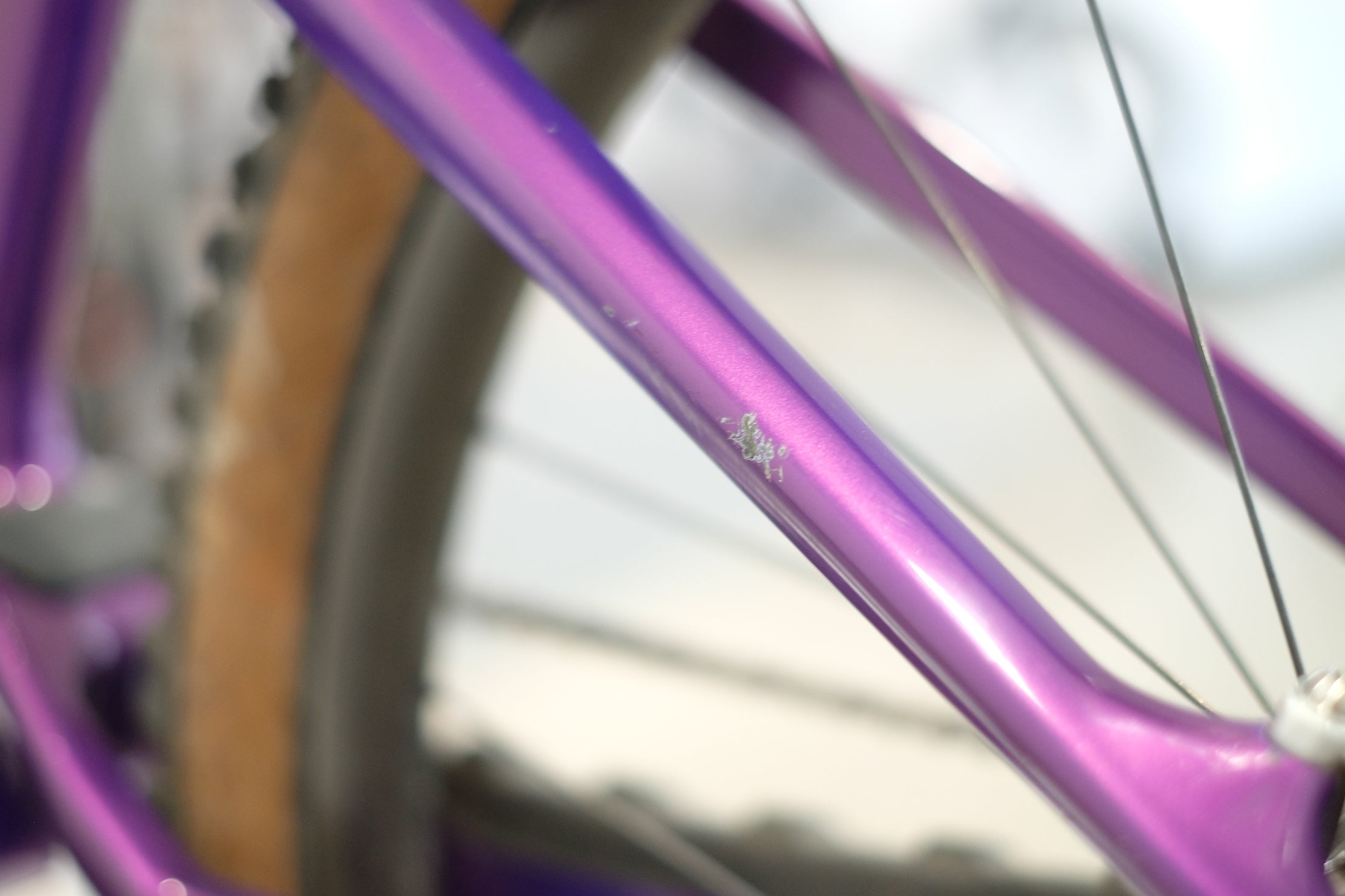

    • Condition: Demo Bike
    Size
    Geometry

    With a long reach and a slack 64.5° head tube angle, FITZ is built for stability without sacrificing agility. The geometry keeps the bike composed at speed and confident through technical terrain, delivering control you can trust as conditions change.

    Technical diagram of a trail bike frame with labeled parts on a white background
    All units are in Millimeters or Degrees
    SM MD LG XL
    a Stack 610.7 619.7 633.3 646.8
    b Reach 430 455 480 505
    c Effective top tube 575 603 632 660
    d Seat tube length 380 410 430 460
    e Head tube length 95 105 120 135
    f Head tube angle 64.5° 64.5° 64.5° 64.5°
    g Seat tube angle 76.6° 76.6° 76.5° 76.5°
    h Bottom bracket drop 35 35 35 35
    i Chainstay length 440 440 440 440
    k Wheelbase 1193 1223 1254 1286
    l Standover height 797.2 814.6 832.4 854.9
    n Front center 753.3 782.6 814.1 845.5
    o Wheel size 29 29 29 29
    Size Guide

    This chart offers a general size recommendation based on height. Since fit is personal, our team can help dial in the right size using your measurements and current bike geometry. Contact us at support@alliedcycleworks.com for a custom fit recommendation.

    Small Reach: 430mm
    157cm 5'2" - 167cm 5'7"
    Medium Reach: 455mm
    162cm 5'6" - 177cm 5'10"
    Large Reach: 480mm
    172cm 5'9" - 188cm 6'0"
    X-Large Reach: 505mm
    180cm 5'11" - 195cm 6'5"
