XC Race

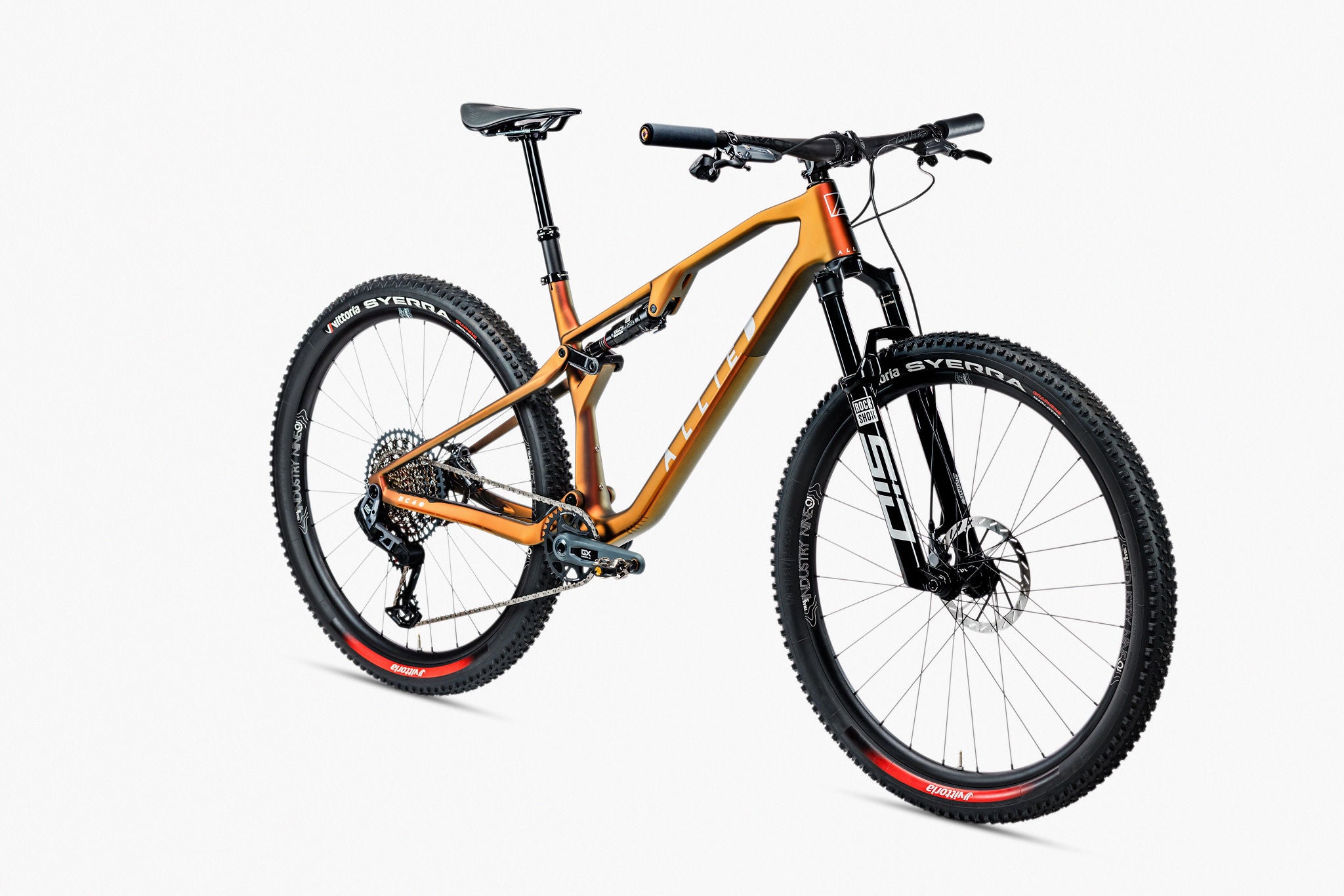

SRAM GX Eagle Transmission Bike

Build your BC40

XC Race

Build Your BC40

SRAM GX Eagle Transmission Bike

Hi-tech, perfectly balanced with relentless durability, is what makes the BC40 with SRAM X0 Eagle Transmission one of our fave cross-country MTBs. Climb, descend, and rip singletrack every day with this elite, workhorse build kit.

Carbon frame
120mm front/rear travel

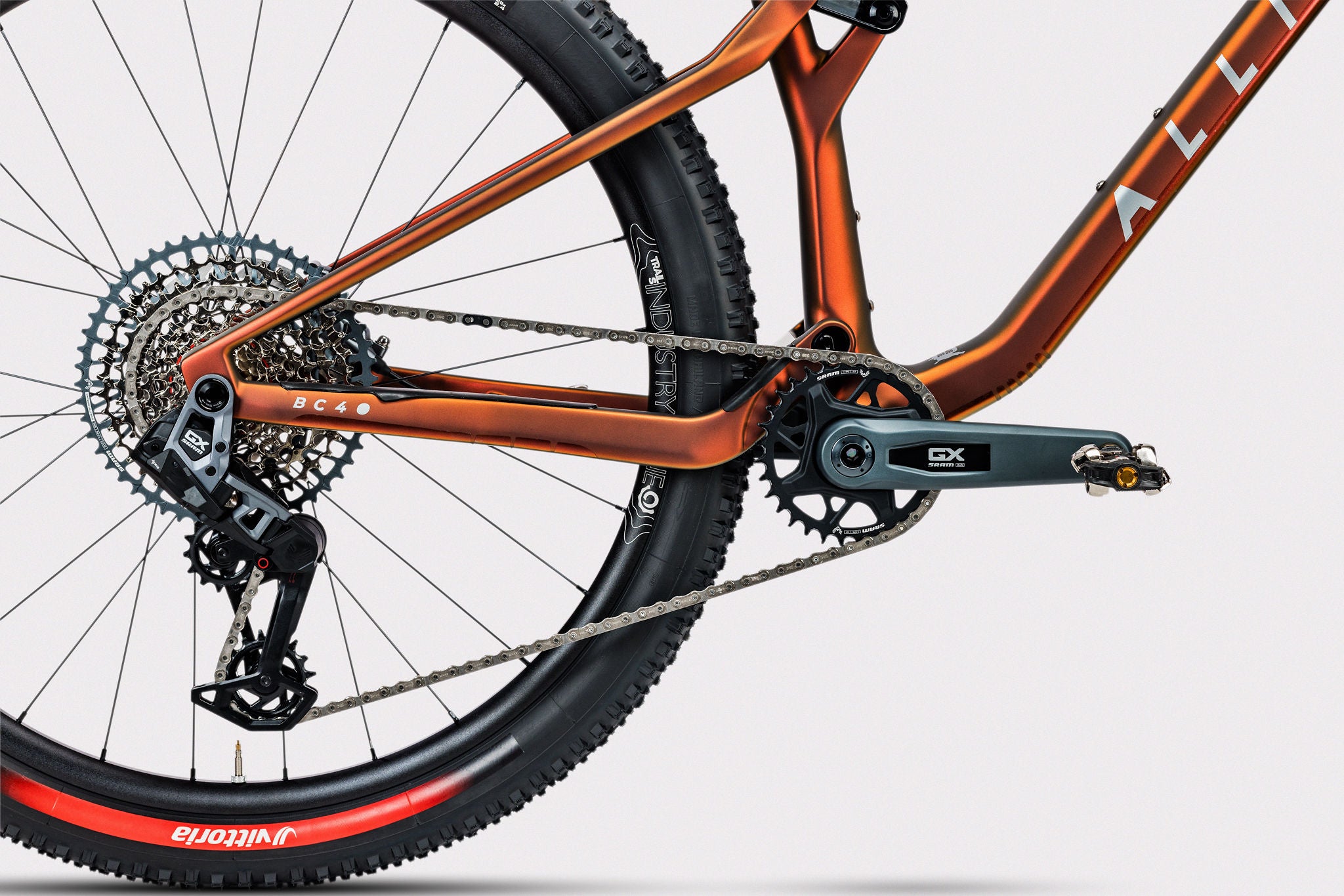

SRAM GX Eagle Transmission

RACE-DAY LIGHT, PLAY-DATE READY

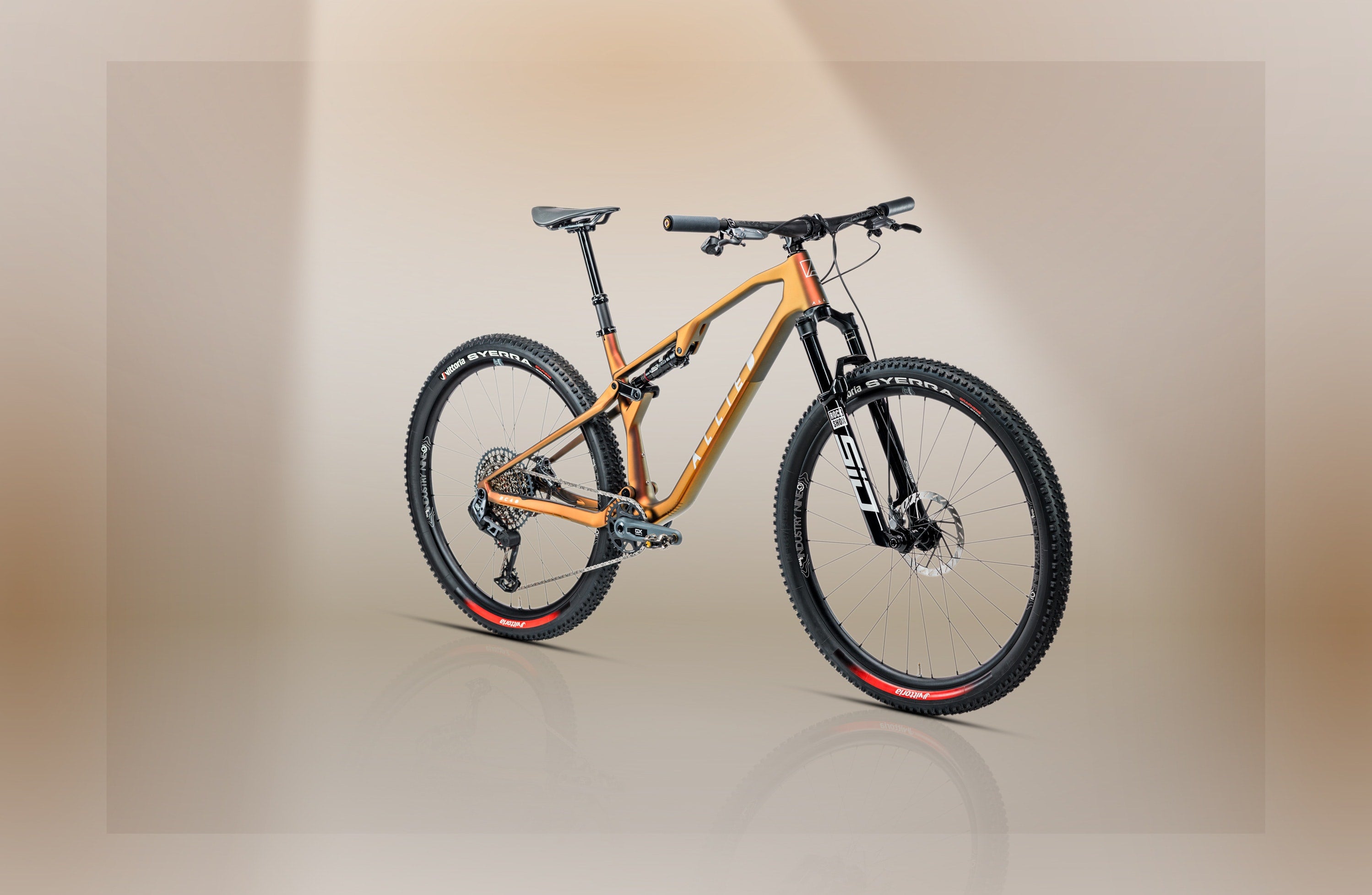

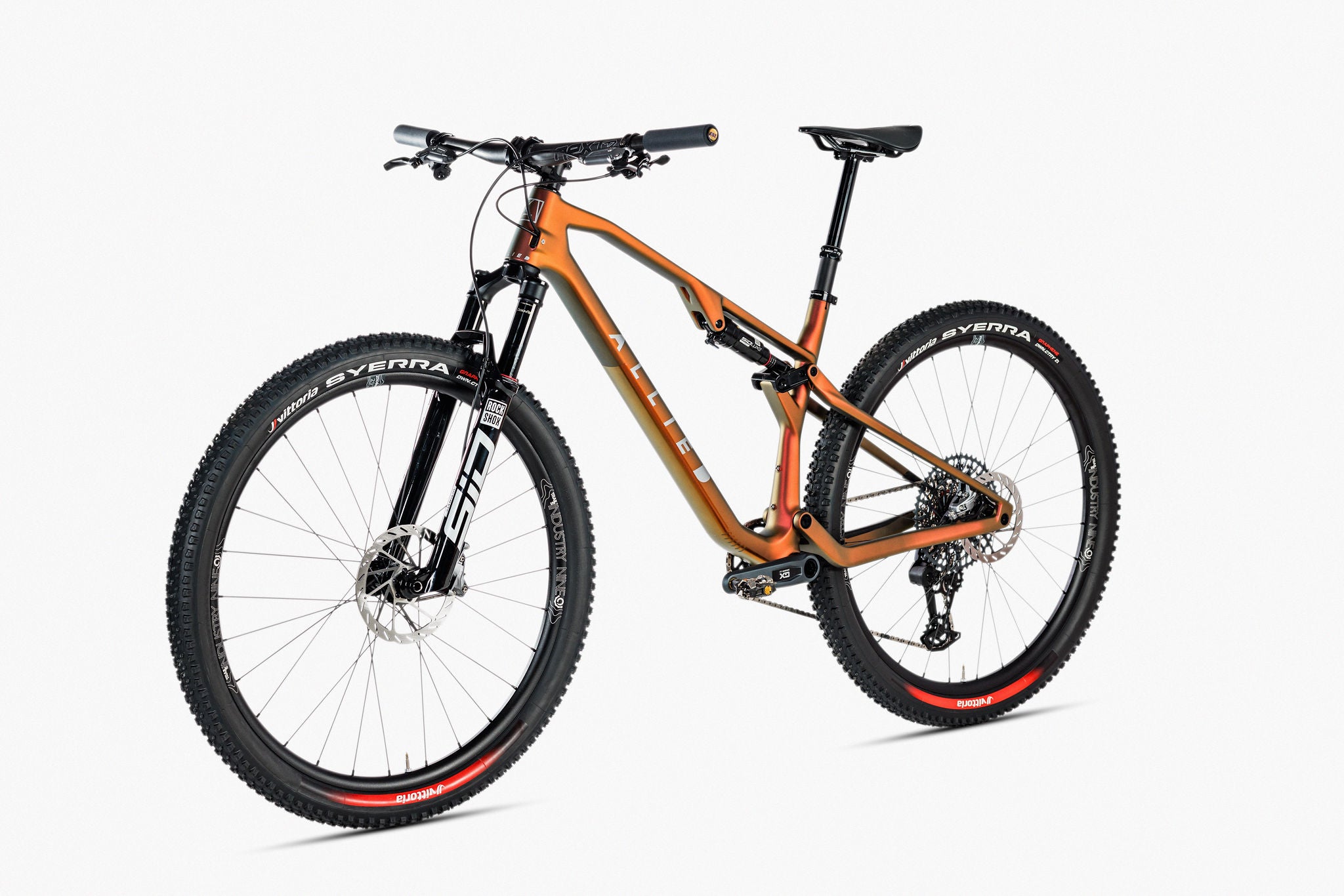

Inspired by the rocky surfaces, dynamic corners, and punchy climbs of our legendary Back 40 trail, BC40 is a second-to-none, modern XC racing bike with legs to take on much bigger trails. Its lightweight, high-performance carbon frame and progressive geometry deliver fast accelerations and race-day sharpness. Its World Cup talent extends to the 120mm suspension travel that also sets it up as a do-it-all weekend trail sled, delivering uncanny levels of control and confidence beyond its category.

BC40 MODEL OVERVIEW

The SRAM GX Eagle Transmission Build

SRAM calls its GX line the “People’s Champion,” as it brings the same shifting tech as their elite lines in a package more riders can get behind. It’s designed to last and deliver the precision of pro-level drivetrains to get the most out of rides on the BC40.

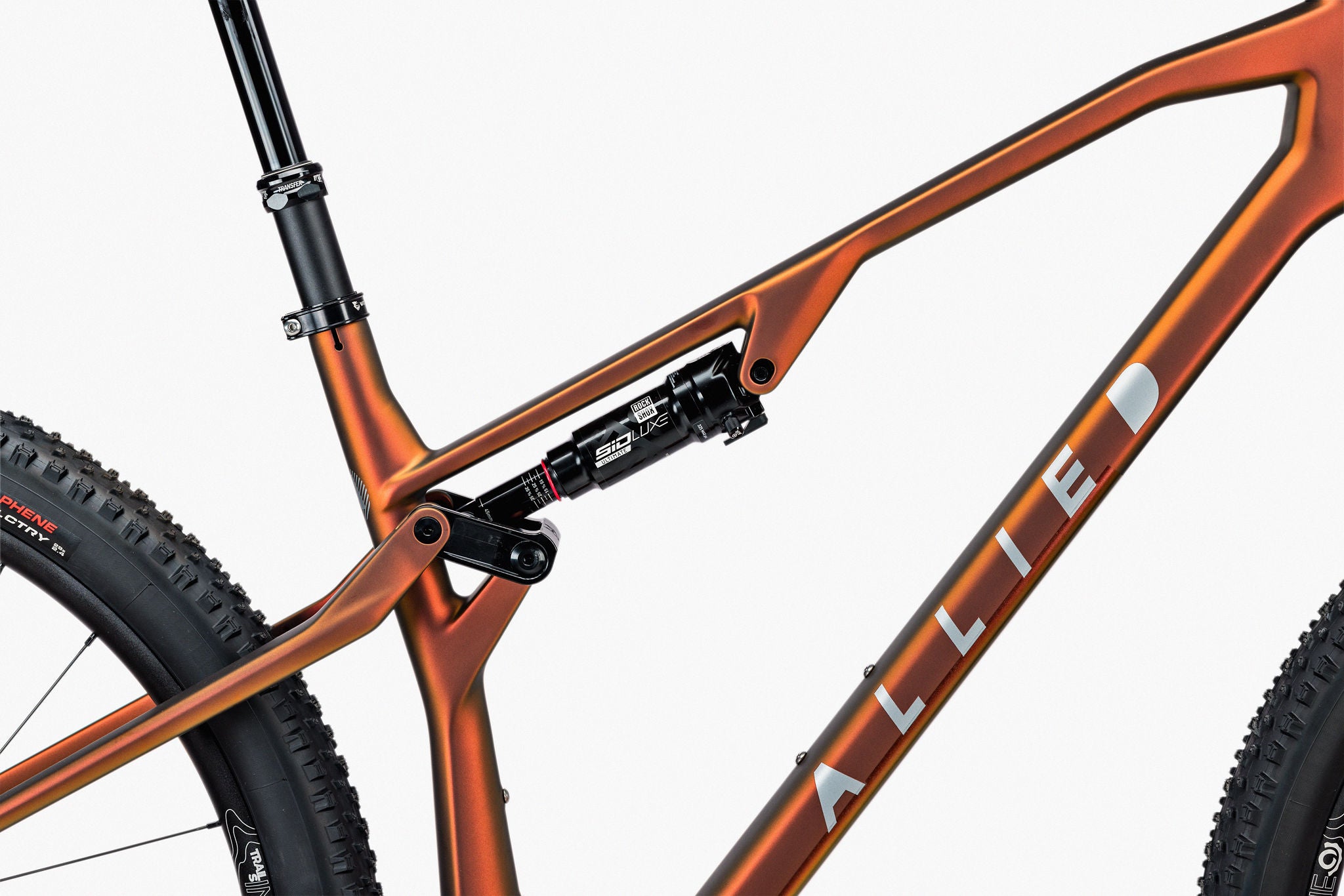

RockShox’s SID Select+ 3P suspension is a race-inspired setup with a lightweight chassis, three-position adjustment, and awesome tunability to dial in for the demands of more trails. Industry Nine’s alloy 1/1 Trail wheels spin up unbelievable performance whether you’re ripping BC40 on smooth singletrack or railing over the gnarliest tracks on the mountain.

The specs below reflect the default Build Kit and do not account for customizations made in the Bike Builder. See your Build Summary above for custom choices.

Front derailleur	N/A

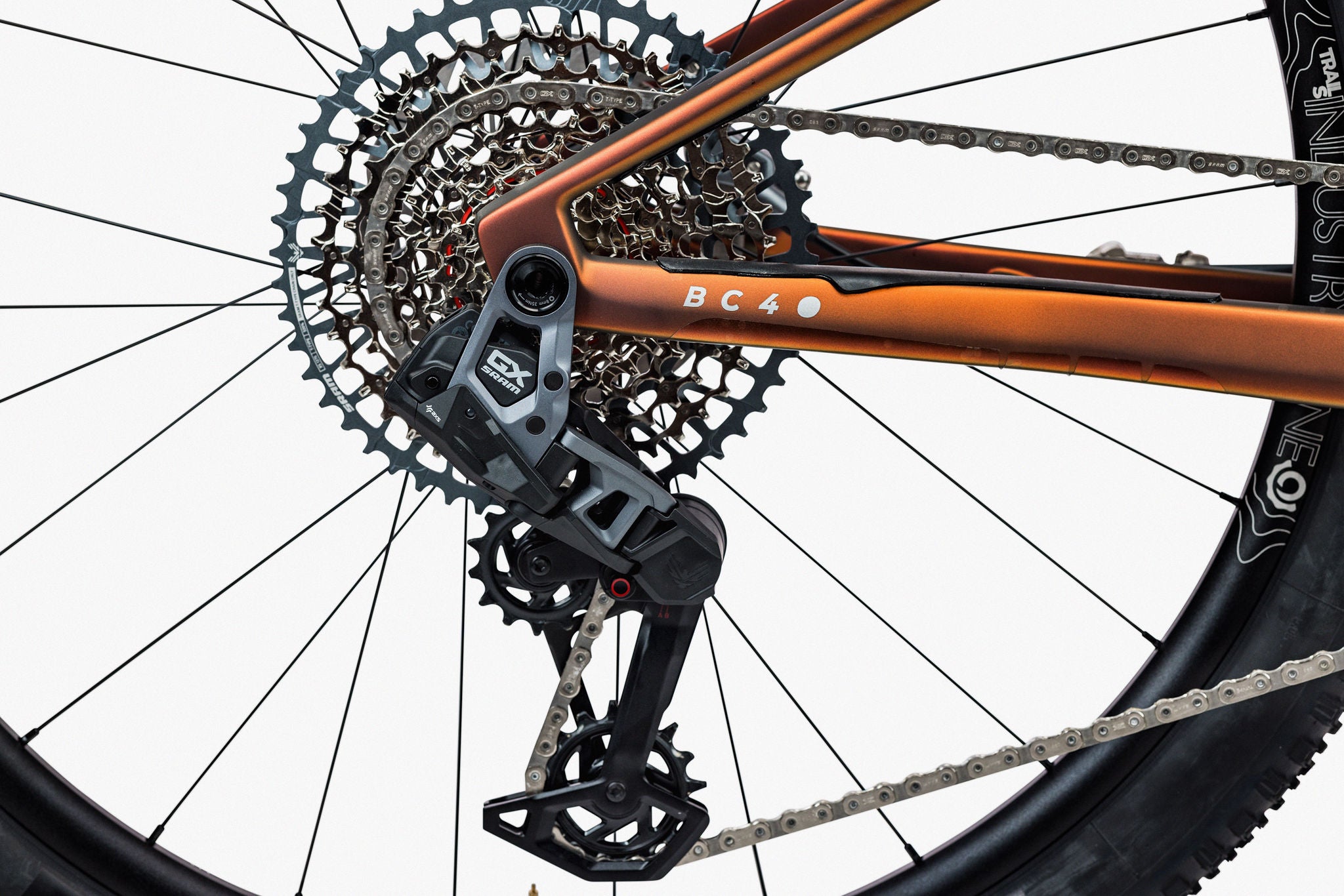

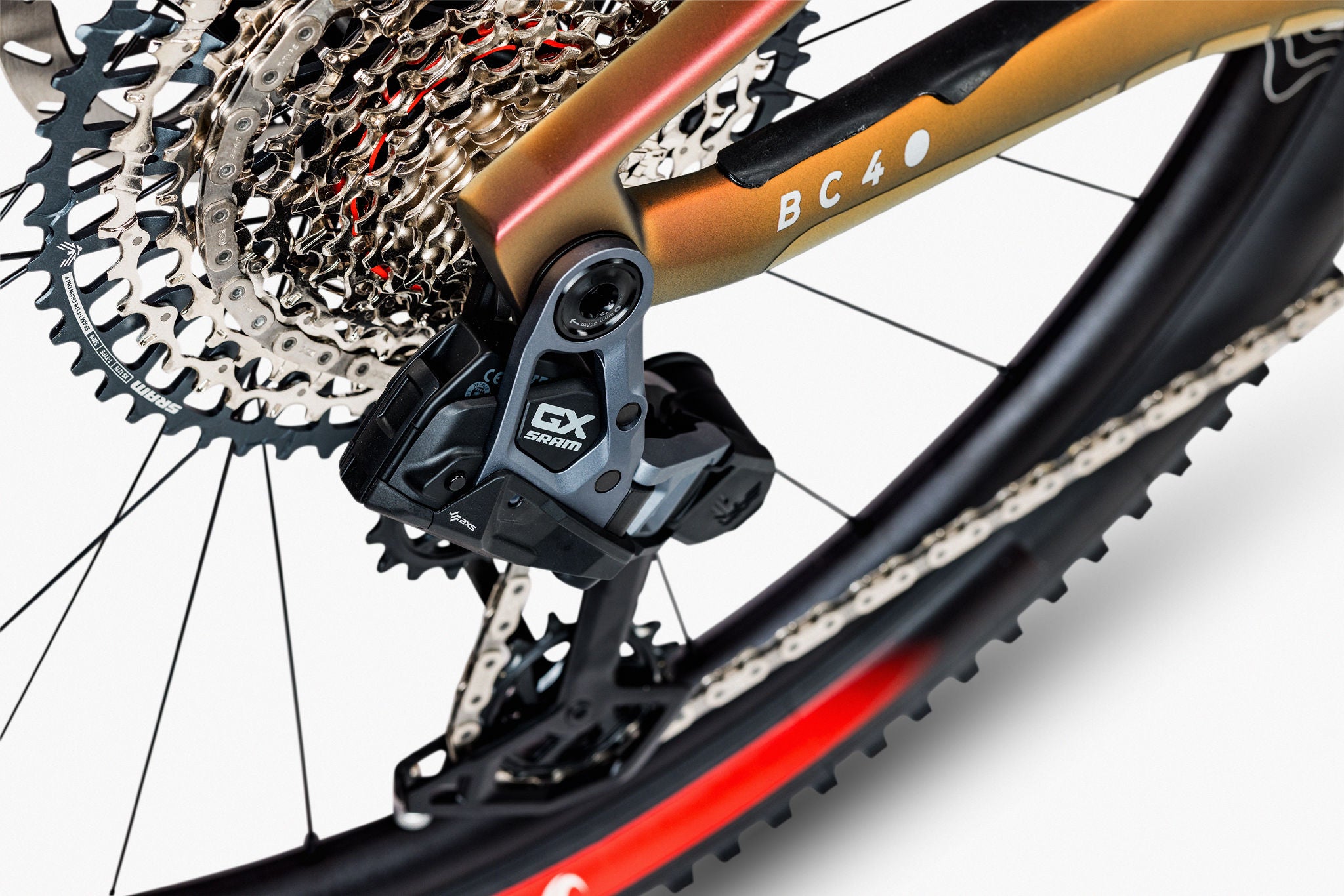

Rear derailleur	SRAM GX Eagle AXS
Shift levers	SRAM GX AXS Controller
Cassette	SRAM XG 1275 Eagle 10-52
Chain	SRAM GX Eagle
Crankset	SRAM GX Eagle Dub
Bottom bracket	SRAM Dub 73 BSA

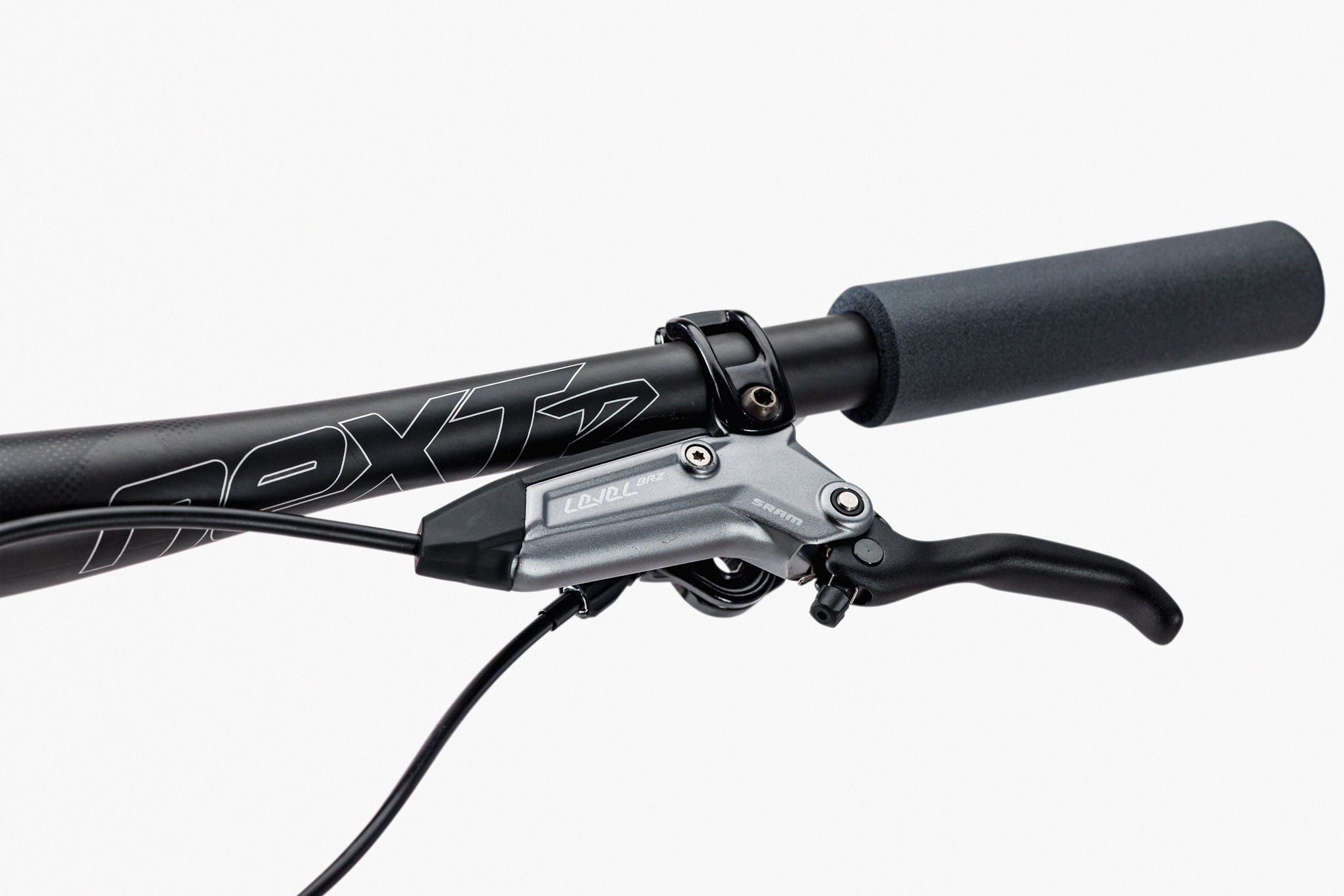

Brakes	SRAM G2 RS 180 Front / 160 Rear

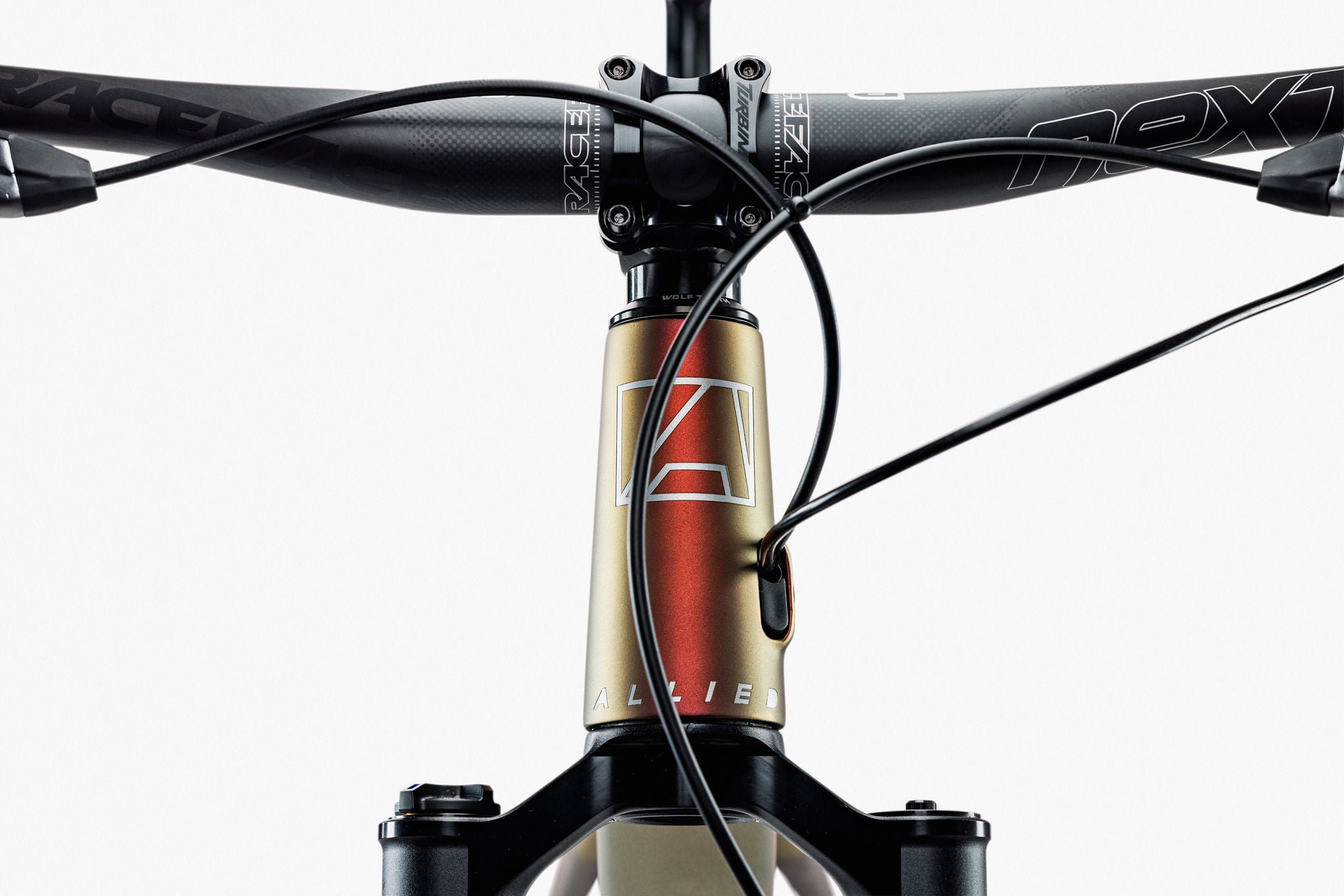

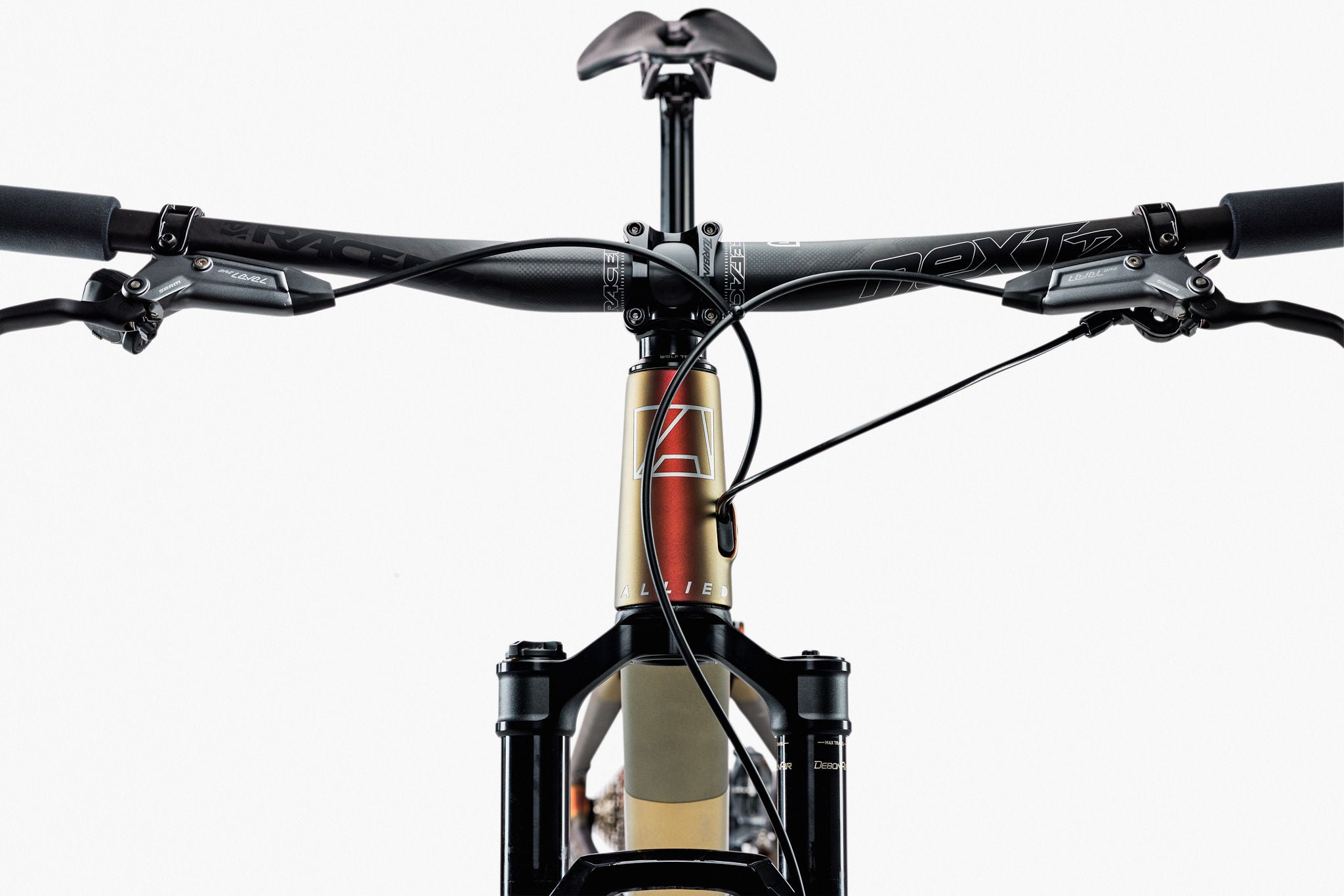

Handlebar	FSA SL-K MTB Carbon
Handlebar tape	ESI Chunky
Stem	FSA Gradient
Saddle	Selle Italia Novus Boost Superflow
Seatpost	Fox Transfer Performance 31.6
Wheelset	Industry Nine 1/1 Trails S
Tires	MAXXIS Rekon 29x2.40 WT EXO/TR Tan Wall

Geometry

For optimal performance and control on fast and technical tracks, BC40 uses a slack head tube angle and a long front-to-center measurement. The result is geometry that positions the rider further behind the front wheel for world-class ride quality and predictable handling, no matter how hard you push it.

All units are in Millimeters or Degrees

	SM	MD	LG	XL
a Stack	598	609	622	633
b Reach	420	445	475	501
c Effective top tube	569	596	630	659
d Seat tube length	395	420	450	500
e Head tube length	95	105	120	135
f Head tube angle	66.5°	66.5°	66.5°	66.5°
g Seat tube angle	76°	76°	76°	76°
h Bottom bracket drop	40	40	40	40
i Chainstay length	435	435	435	435
k Wheelbase	1145	1174	1210	1241
m Fork rake	44	44	44	44
n Front center	710	739	778	806
o Wheel size	29	29	29	29

Size Guide

Please note, we do not have a height-based size chart. Since everyone's proportions are different, we prefer to have a human involved. Please email our fitting team at support@alliedcycleworks.com and we will custom fit you via your measurements and current bike geometry.

Small Reach: 420mm

157cm 5'2" - 167cm 5'7"

Medium Reach: 445mm

162cm 5'6" - 177cm 5'10"

Large Reach: 475mm

172cm 5'9" - 188cm 6'0"

X-Large Reach: 501mm

180cm 5'11" - 195cm 6'5"

Frequently Asked Questions

Quite simply, we love mountain biking. It’s in our DNA, and we are lucky enough to live/work in the mountain bike mecca of NWA. Just like the ECHO and ABLE, we built a bike that we wanted to ride, inspired by our local terrain and the demands our athletes require to perform at the highest level.

We try our best to accommodate custom options. Please reach out to us and we will let you know if it is possible and give you a quote.

Yes, all of our bikes and models ship set up tubeless with Orange Seal sealant.

No, since everyone's proportions are different, we prefer to have a human involved. Please email our fitting team at support@alliedcycleworks.com and we will custom fit you via your measurements and current bike geometry.

See exploded view HERE

The BC40 is set up with and designed around 120mm travel front and rear. It can also be set up with 110mm or 100mm options by utilizing different fork and shock options. You will see our athletes using the BC40 in 100mm travel mode for races like Leadville this summer.

The BC40 frame was designed, prototyped, and fully tested in-house at our factory in Bentonville, AR. The carbon layup and molding on the front and rear triangles take place at an external factory based in Asia. Each raw carbon part produced at the external factory undergoes a rigorous in-house quality inspection and paint preparation to ensure the highest standards. The suspension link, brake mount, and DUET stem are manufactured fully in-house at our Bentonville location. Finally, the frame is custom-painted and assembled to each customer’s unique order at our Bentonville facility, and goes through a final inspection and test ride before leaving the factory.

29x2.4” on all sizes.

We will offer options with SRAM, Shimano, Fox and RockShox so each rider can build their own dream bike.

Target frame weight including Sid Luxe Ultimate shock is 1950g/4.3lbs for size L; final weight will vary depending on size and paint option selected.

Like all ALLIED bikes, the BC40 is built to customer order. Each rider can choose from one of our many base and logo color options. Additionally, we hope to offer a couple of our athletes’ custom paint jobs as limited editions.

See attached for the BC40 Geo and Frame Specs.

All frame sizes have a 705mm (27.8") standover measured from the center of the bottom bracket to the top of the top tube.

Please reference our BC40 Saddle Height Guide for minimum and maximum saddle heights per dropper length.

Absolutely! Click here.

73mm English Threaded BSA

We spec it around the Chris King Dropset 3:

41mm 45x45 upper bearing
52mm 36x45 lower bearing

Two! One of any size on the downtube, and one 21oz or less on the seat tube. Double-check that your lid doesn't rub the shock mount and the base doesn't touch the downtube—you don't want it to rub your beautiful paint!
